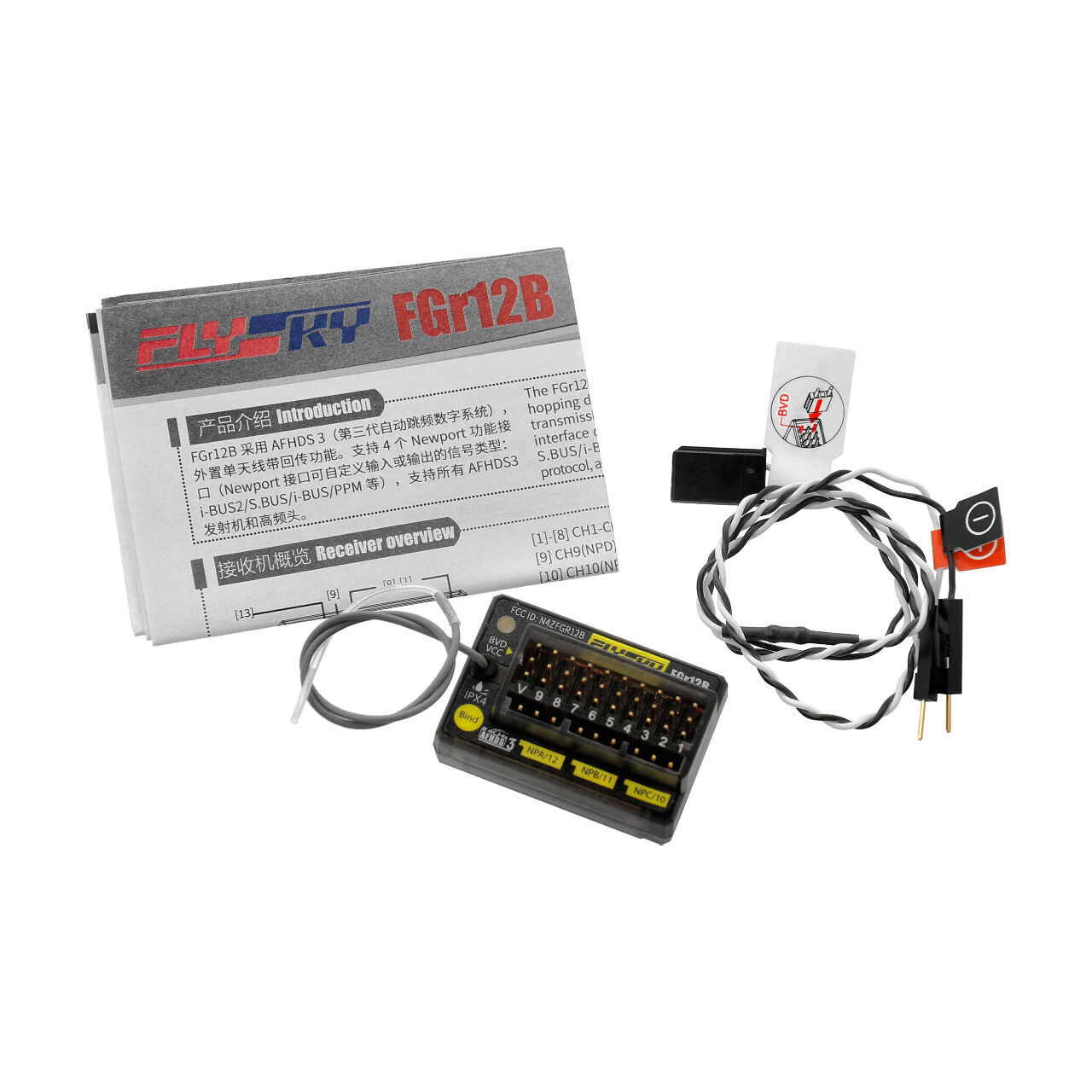

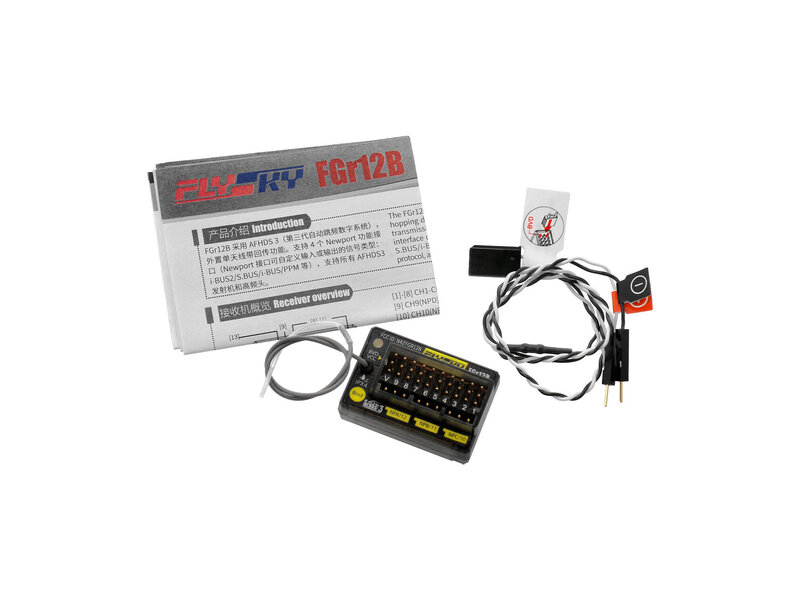

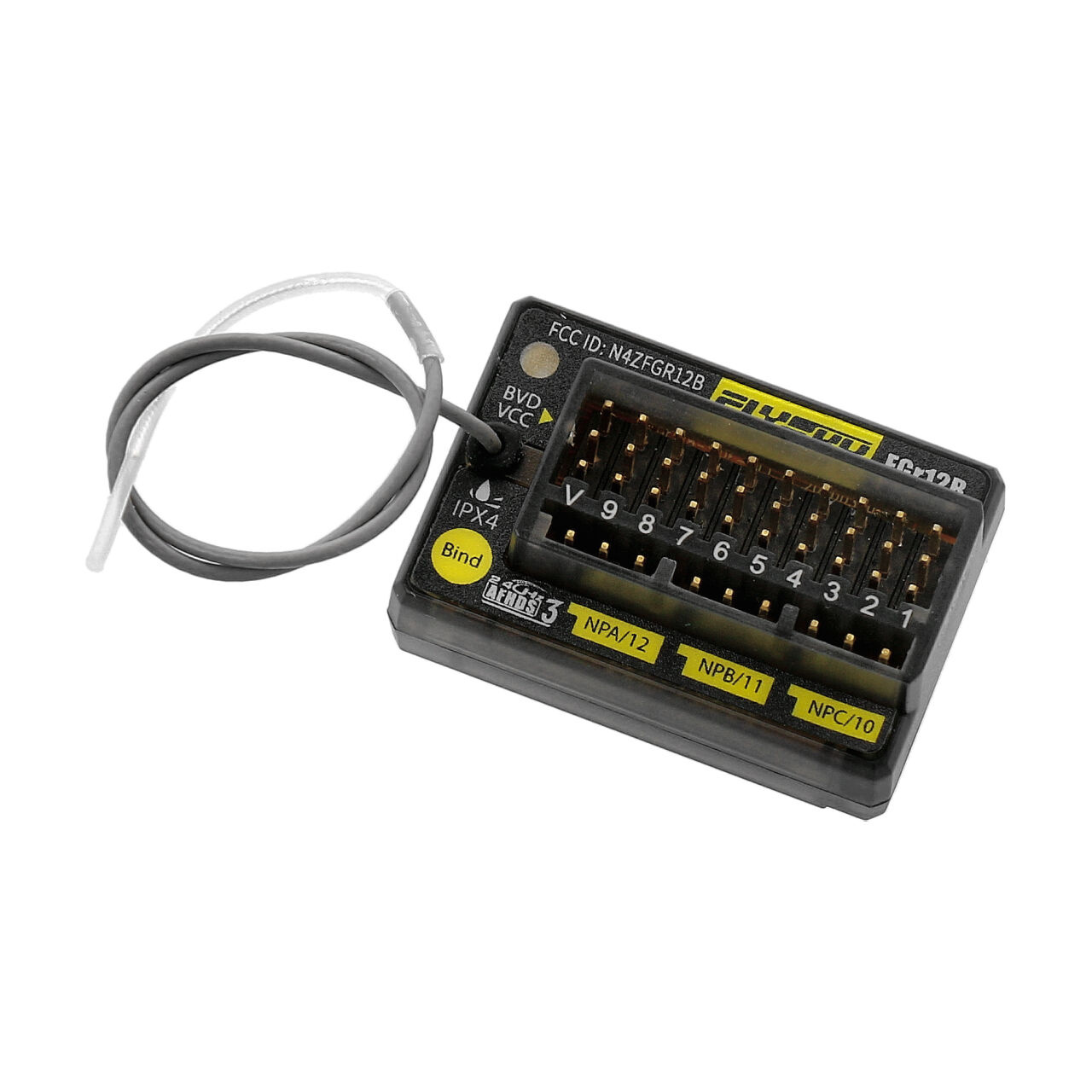

Flysky FGr12B AFHDS3 Receiver 12CH

Flysky / FS012 / FGr12B AFHDS3 Receiver 12CH

Specifications:

• Product Model: FGr12B
• Adaptive transmitter: all transmitter supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.)
• Model Type: Car/Boat ect.
• PWM Channels: 12
• RF: 2.4GHz
• 2.4G Protocol: AFHDS 3
• Antenna: Single Antenna
• Input Power: 3.5-9V
• Data Output: PWM\PPM\i-bus in
• Temperature Range: -10℃—+60℃
• Humidity Limit: 20%-95%
• Online Update: Yes
• Dimensions: 37*25*17.5mm
• Weight: 11.2g
• Certification: CE，FCC ID:N4ZFGR12B

MANUAL
