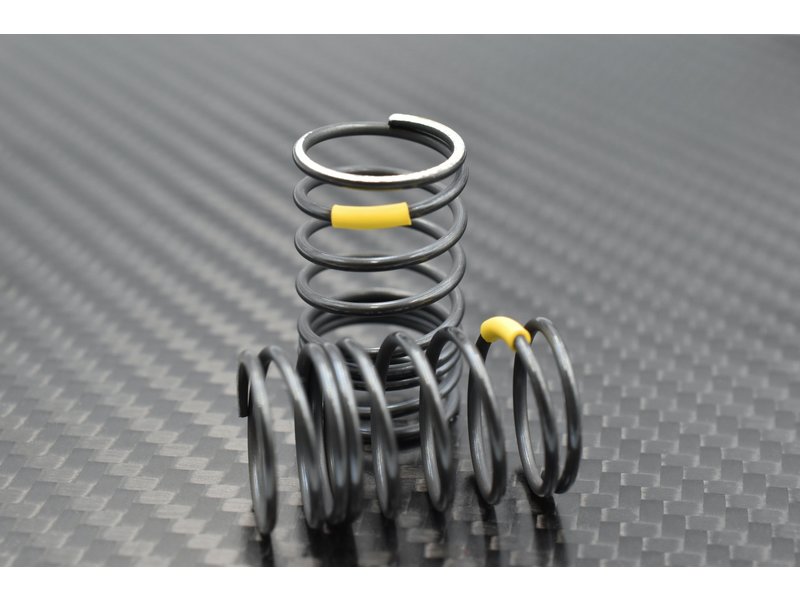

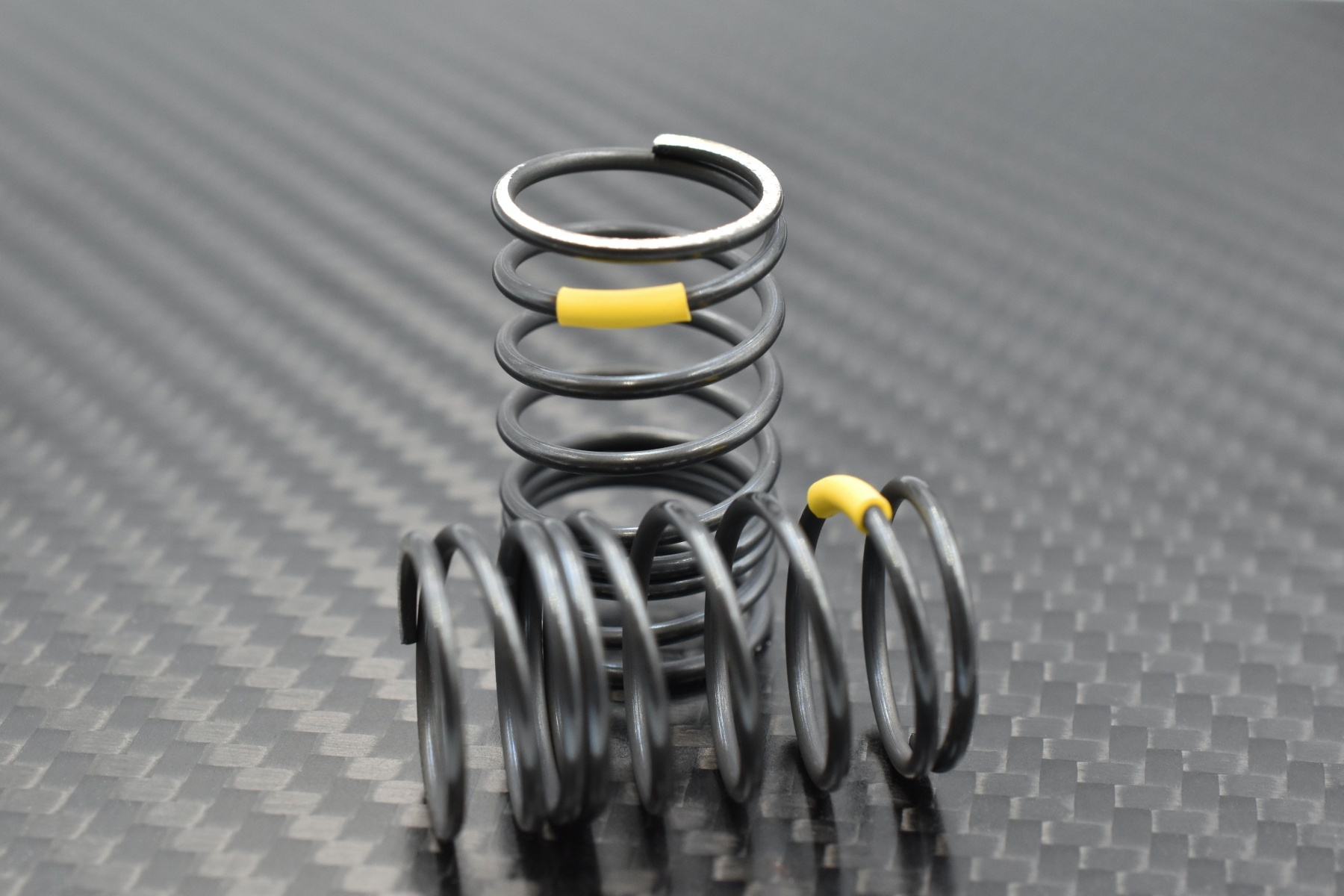

ReveD / RD-016RMH / R-tune 2-Way PC Rear Spring Medium Hard (2pcs)
ReveD / RD-016RMH / R-tune 2-Way PC Rear Spring Medium Hard (2pcs)
This multi-winding type PC rear spring that specializes in relatively low-grip road surfaces such as P tiles and colored concrete.
Now introducing the new PC rear spring which uses the amazing “SWO” material that has been proven in the R-tune series! By adopting a new “SWO” material and making it easier to induce initial subduction even at higher spring rates gives a strong kicking feeling and control performance are realized at a high level.
We will continue to use the 2-way structure that is popular in the PC rear spring series.
By flipping the top and bottom of the spring, you can instantly adjust it according to the road surface conditions and driving skills. There are 3 types in the line-up (Medium, Medium hard, hard)
Medium for those who want to enjoy the roll feeling.
For those who want a competitive run, medium hard and hard are recommended.
Please try the R-tune PC rear spring that can be selected according to the vehicle weight and road grip!
* The recommended retainer to be installed under the spring is 0mm (RD-007-0) or 2mm (RD-007-2).
Line-up:
- RD-016RM：R-tune PC Rear Spring Medium (2pcs)
- Length (natural length): 29mm
- Number of turns: 9
- Shrink tube color ID: Black - RD-016RMH：R-tune PC Rear Spring Medium Hard (2pcs)
- Length (natural length): 29mm
- Number of turns: 8.75
- Shrink tube color ID: Yellow - RD-016RH：R-tune PC Rear Spring Hard (2pcs)
- Length (natural length): 29mm
- Number of turns: 8
- Shrink tube color ID: Red
Introduction of 2WAY structure:
- Contact lines Down
By lowering the center of gravity of the spring, excessive suspension movement is suppressed and stability is increased on low grip surfaces. - Contact lines UP
By raising the center of gravity of the spring, the droop of the suspension is induced and the kicking out feeling is stronger.
