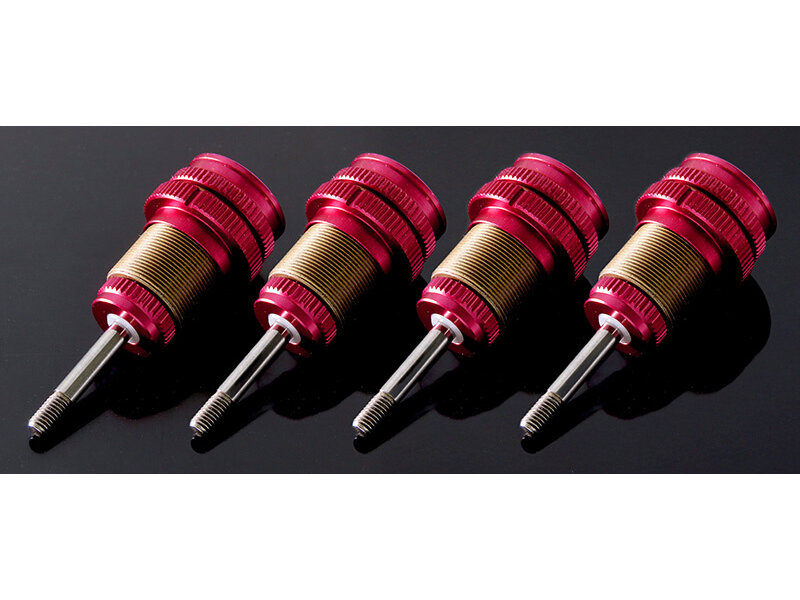

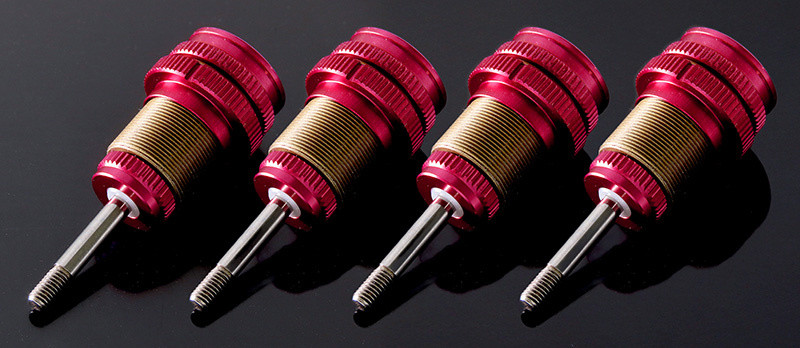

WRAP-UP Next - 0797-FD - SG Shock 3 for RDX/WRAP-UP Red (4pcs)
WRAP-UP Next - 0797-FD - SG Shock 3 for RDX/WRAP-UP Red (4pcs)
SG Shock 3, which has evolved through brush-up
Compatible with RDX shock tops/WRAP-UP full-length adjustable shock tops

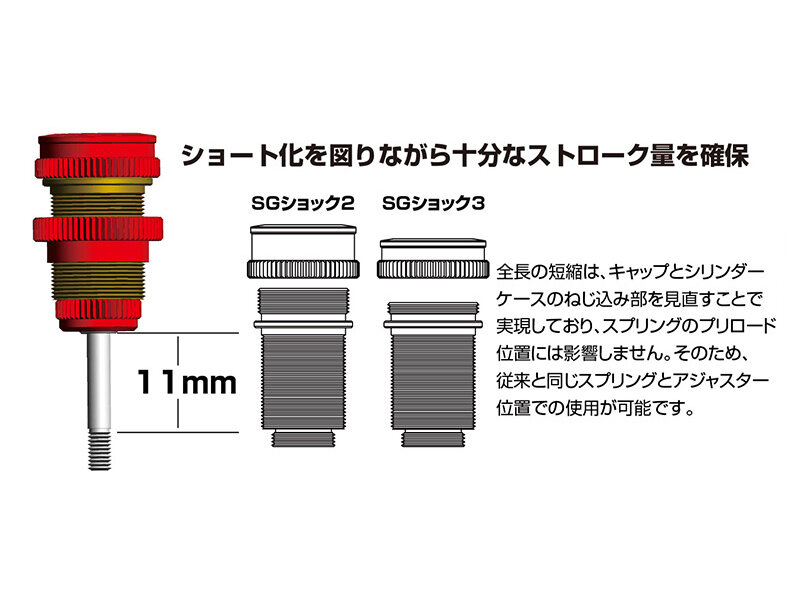

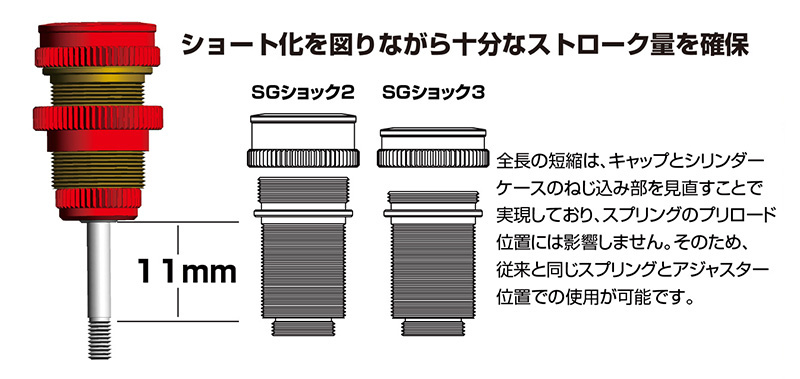

The SG Shock 2, which has been loved by many machines, has evolved into the “3” through further improvements. The overall length has been shortened by 2mm through a review of the design. While ensuring sufficient stroke, the overall length has been reviewed to increase installation freedom and expand the adjustment range of vehicle height, bottom, and rebound.
When length is required, there is ample adjustment range for the ball end, so it can be used for a wide range of vehicles. It also solves the problem of “the installation position is low and the bottom amount cannot be secured” that occurred with some chassis.
The shortening of the overall length has been achieved by reviewing the screw-in part of the cap and cylinder case, and does not affect the spring preload position. Therefore, it can be used with the same spring and adjuster position as before.
Shock tops, retainers, and shock ends are not included. The shock top is compatible with the D1-S6M included in the RDX kit, the OD1171-3 included in the GALM kit, Tamiya OP-1871 TRF damper reinforced V parts for 5mm, and WRAP-UP 0728-FD full length adjustable shock top.
- Kashima Coat treatment provides extremely excellent wear resistance and lubrication.
- φ0.7 x 12 hole machined piston provides balanced damping performance. As a guideline, the damping is equivalent to φ1.2 x 4 holes.
- X-shaped O-ring provides excellent sealing and smooth operation.
- Machine-made POM shaft guide with excellent dimensional accuracy and friction coefficient.
- High-precision polishing achieves smooth operation. Shaft length 27mm.
- High-quality diaphragm with excellent sealing and flexibility.
