WRAP-UP Next 0763-FD - VX-Dock Zero - Front Core Module / Purple

WRAP-UP Next - 0763-FD - VX-Dock Zero - Front Core Module / Purple

Retrofit to revive your old car.
Upgrade to the latest RWD model
Compatible with drift packages and WRAP-UP chassis

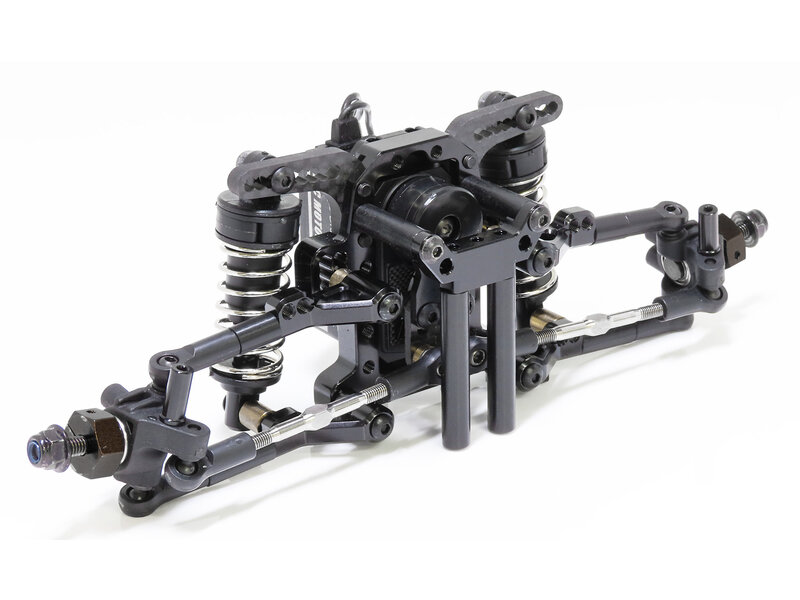

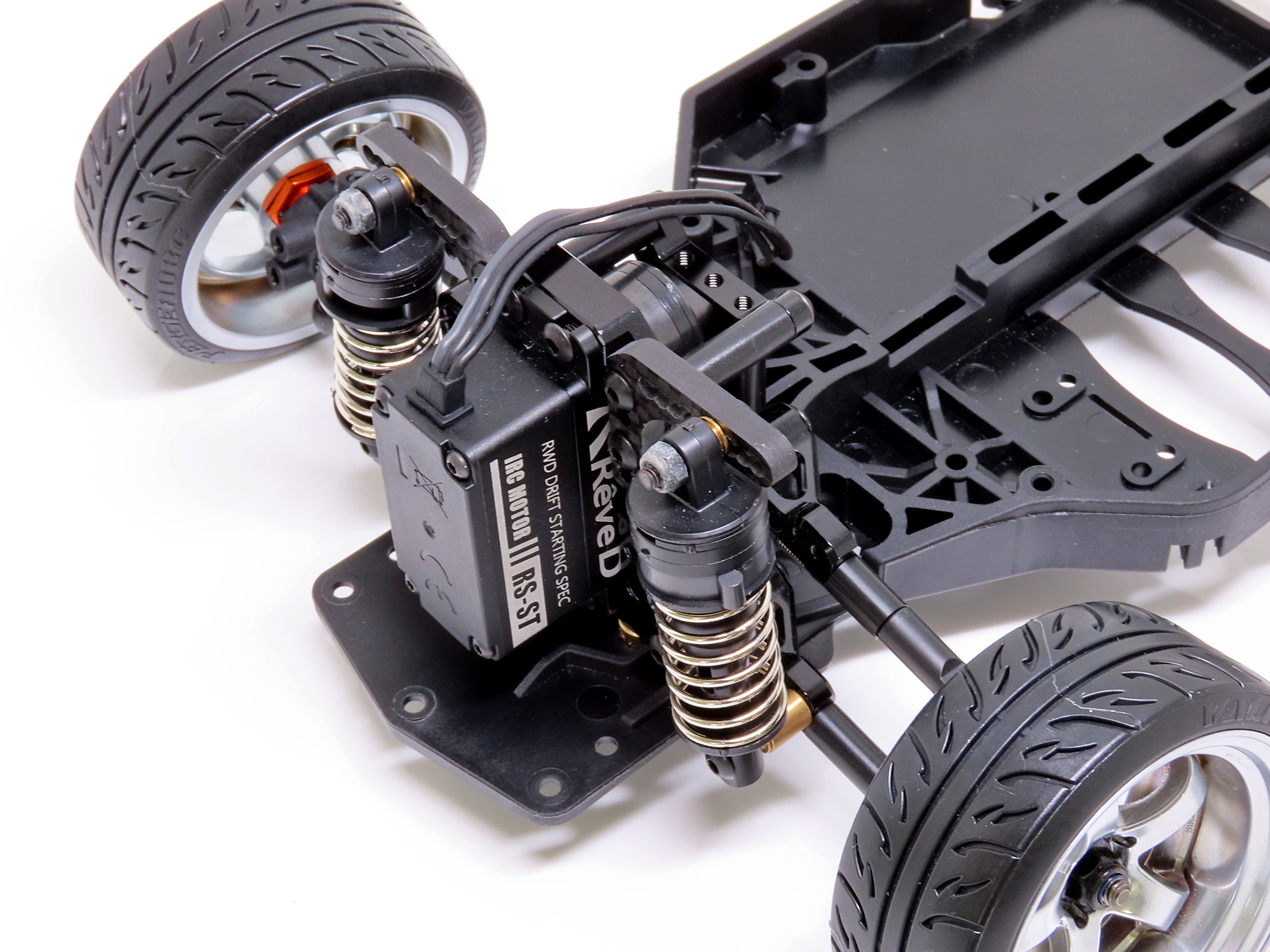

Front core module "VX-DOCK ZERO"
The front core module "VX-DOCK ZERO" used in the latest MB-01, BT-01, and M-RDX conversion kits is available as a standalone.

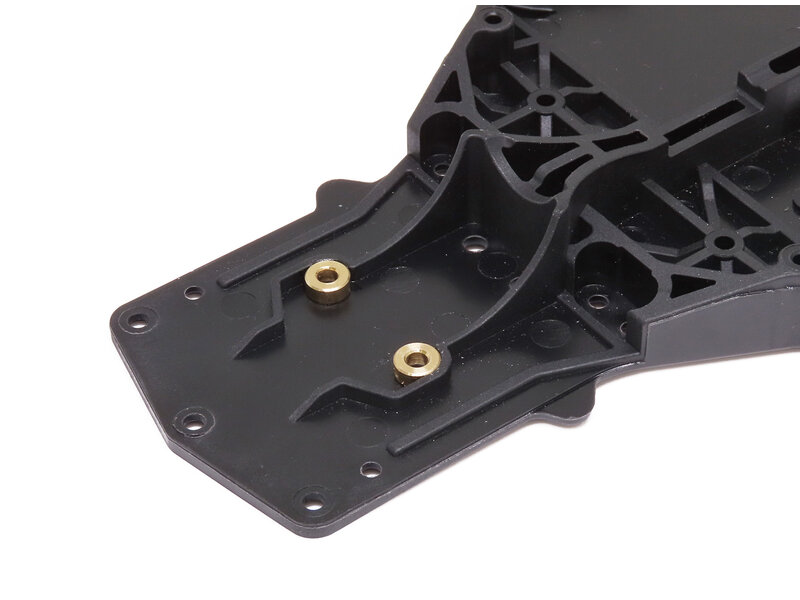

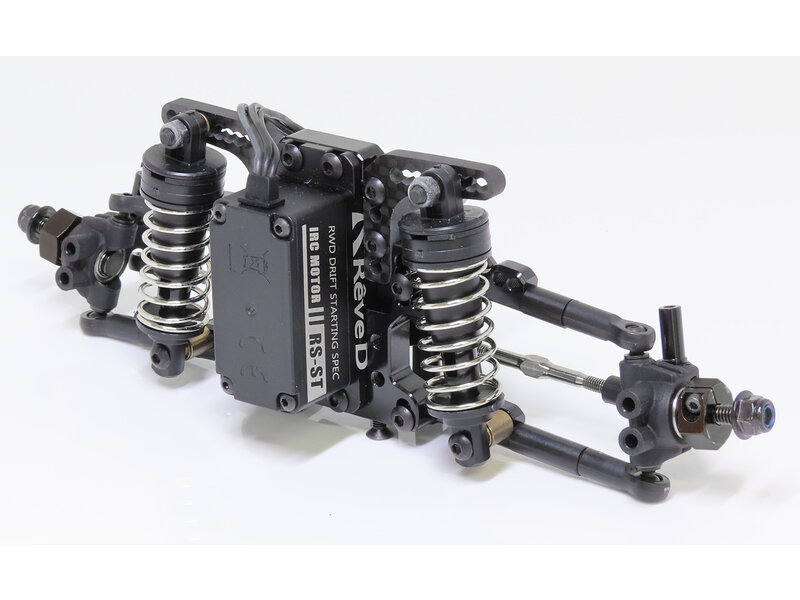

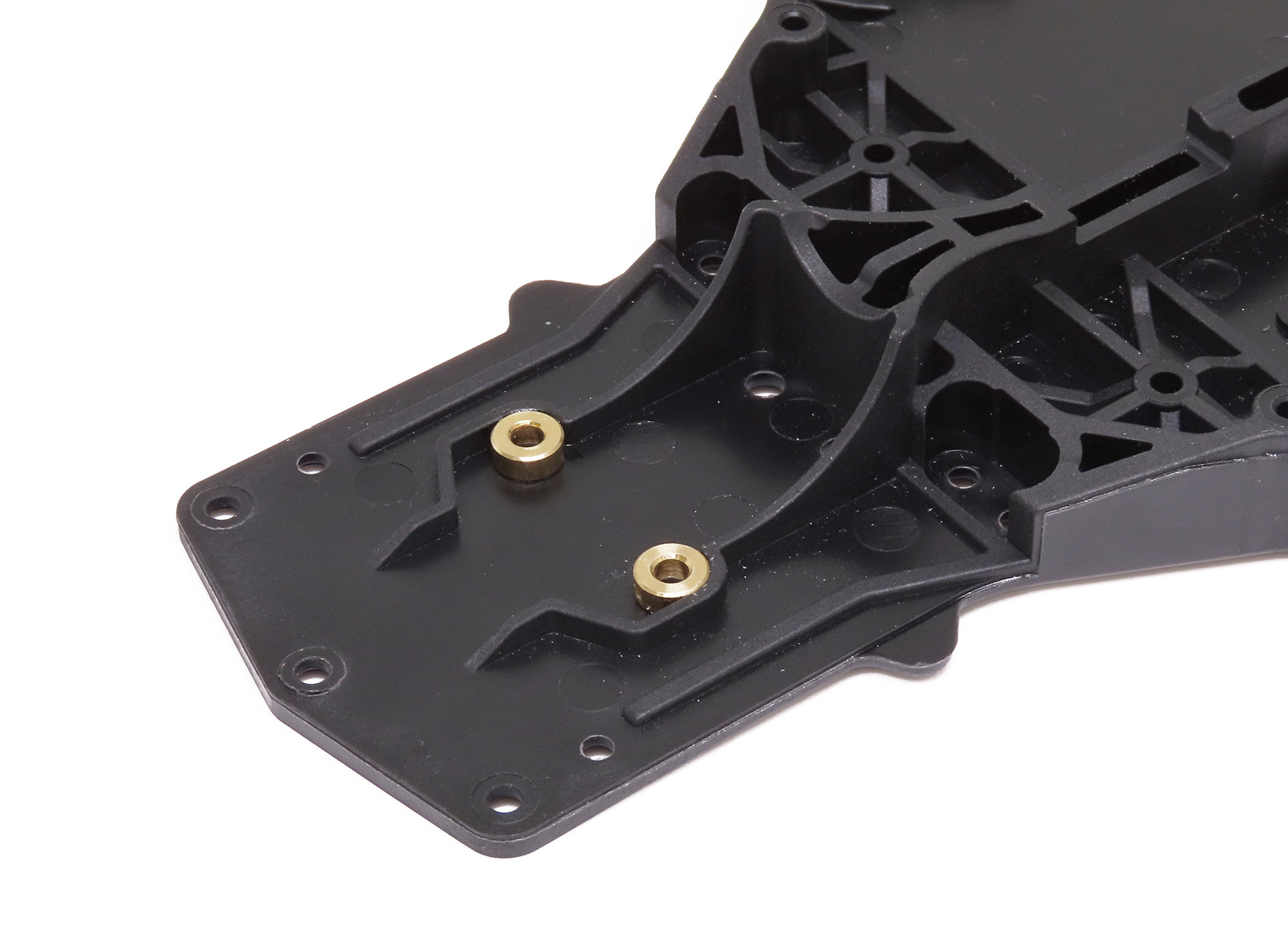

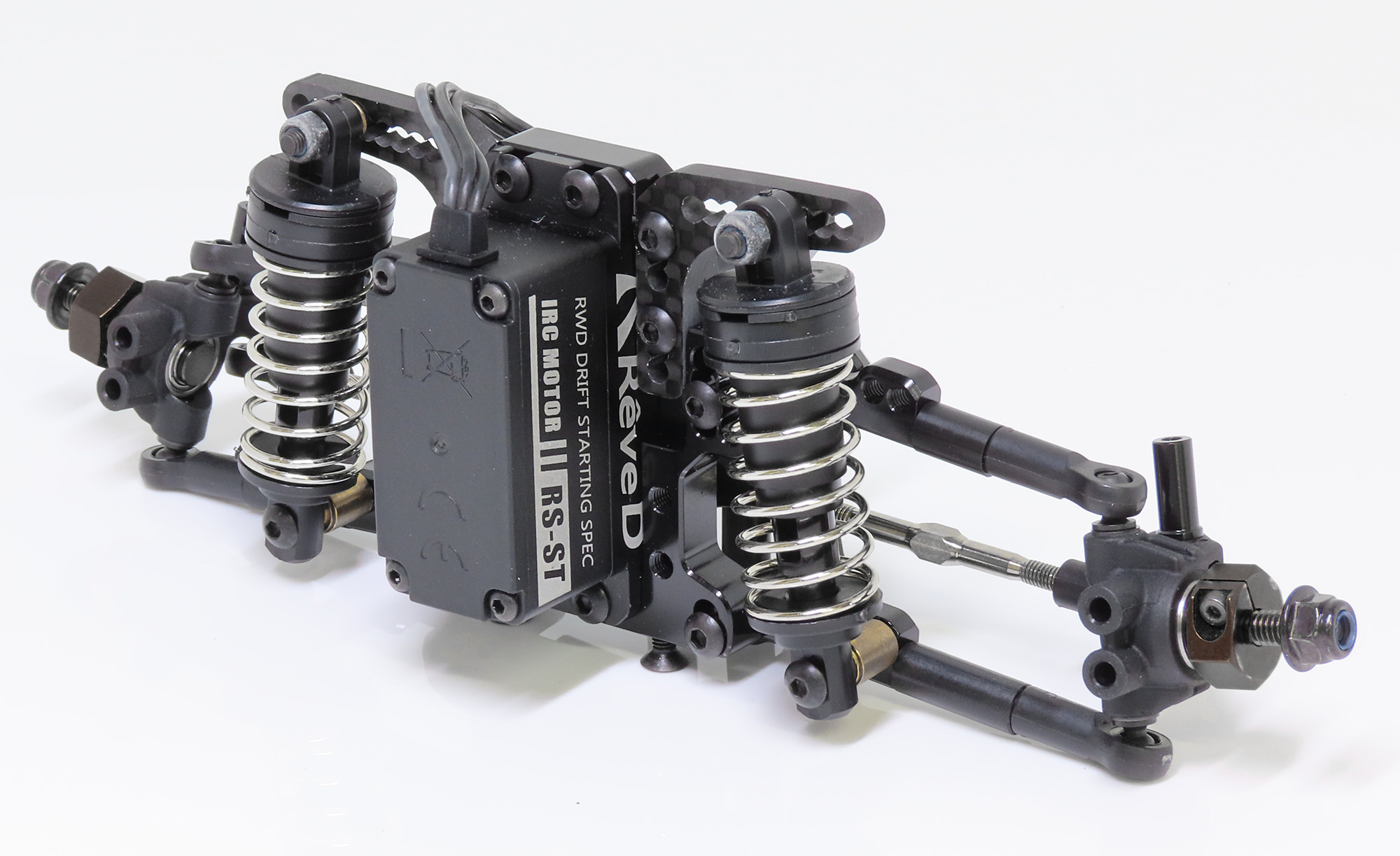

The unit integrates the suspension, servo, and steering mechanisms and can be connected to the chassis with only four screws (front gearbox fixing part).
Recommended for reviving old cars and homemade chassis.

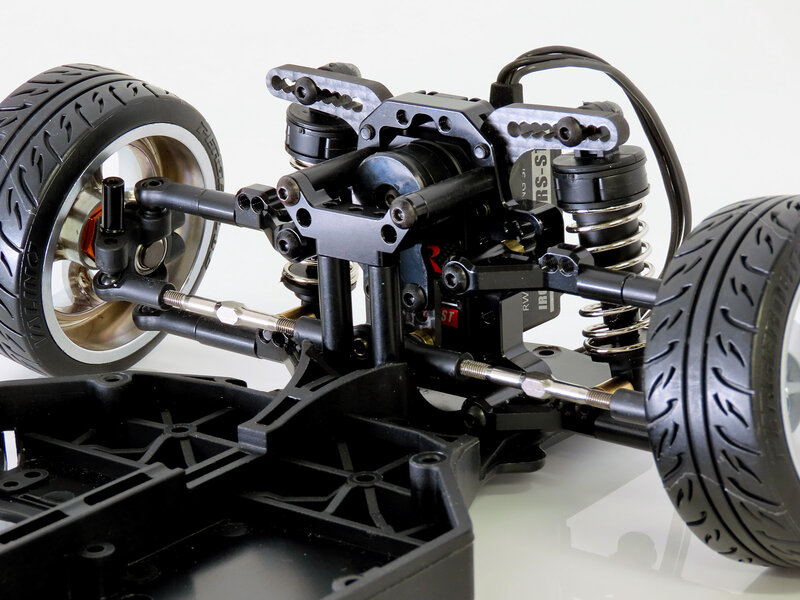

Direct steering system
Achieves the large steering angle required for RWD drift driving while suppressing optimal Ackermann, EPA, and bumps.

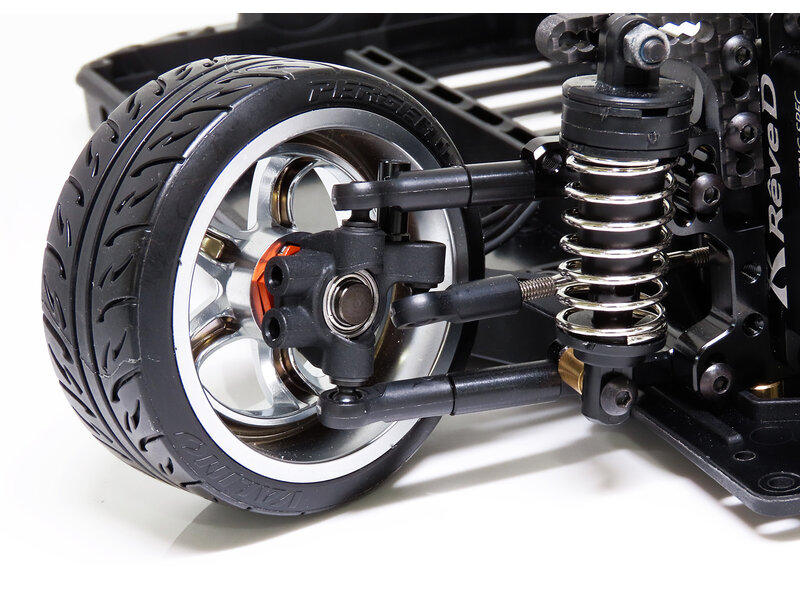

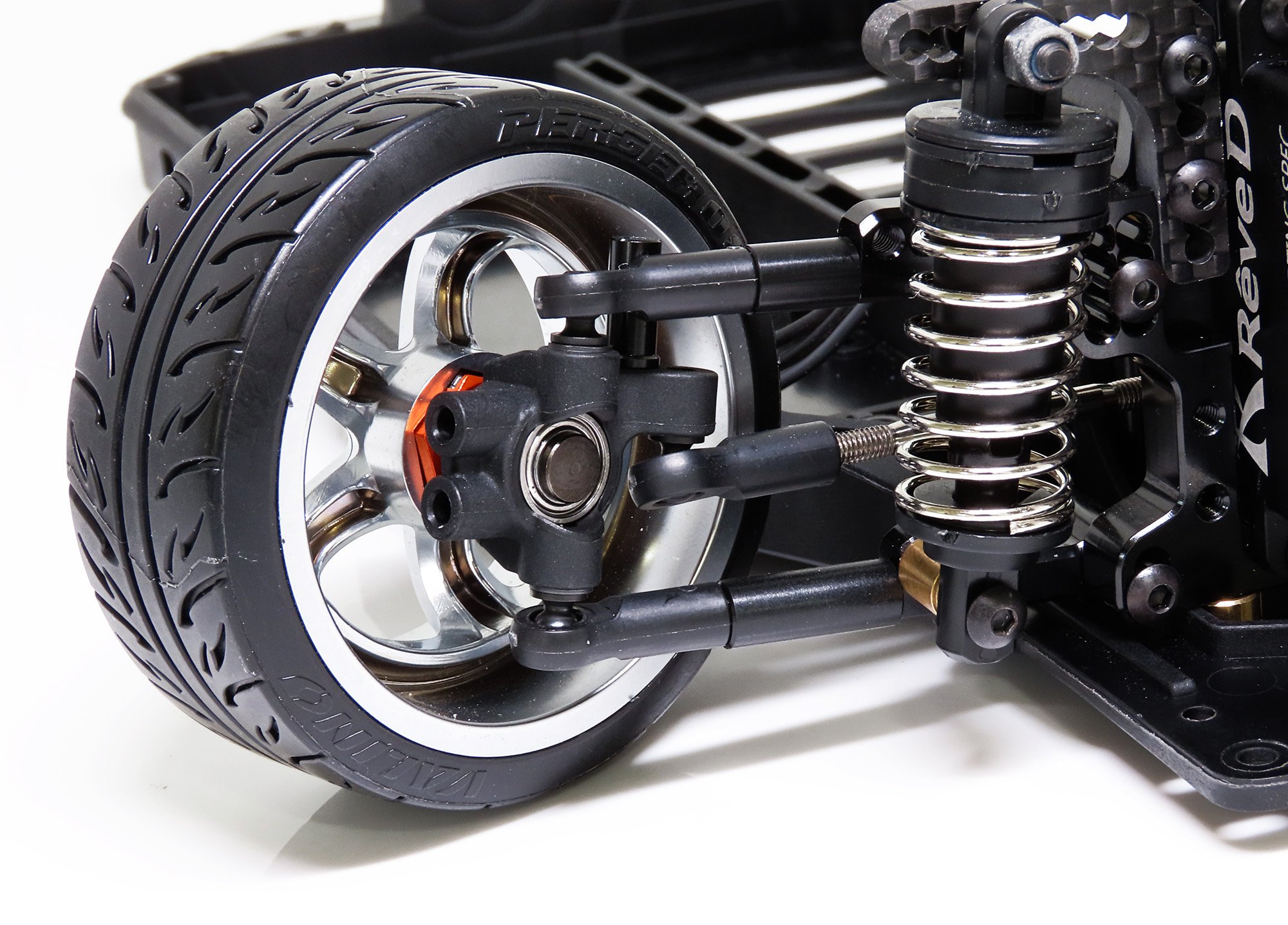

Suspension mountless structure
The lower and upper are made of a common aluminum arm, and are directly fixed to the bulkhead with one-sided support by a strong 5mm diameter steel shaft. No need for suspension mounts, suspension shafts, suspension balls, etc., which improves maintainability and contributes to cost savings.
Excellent maintainability

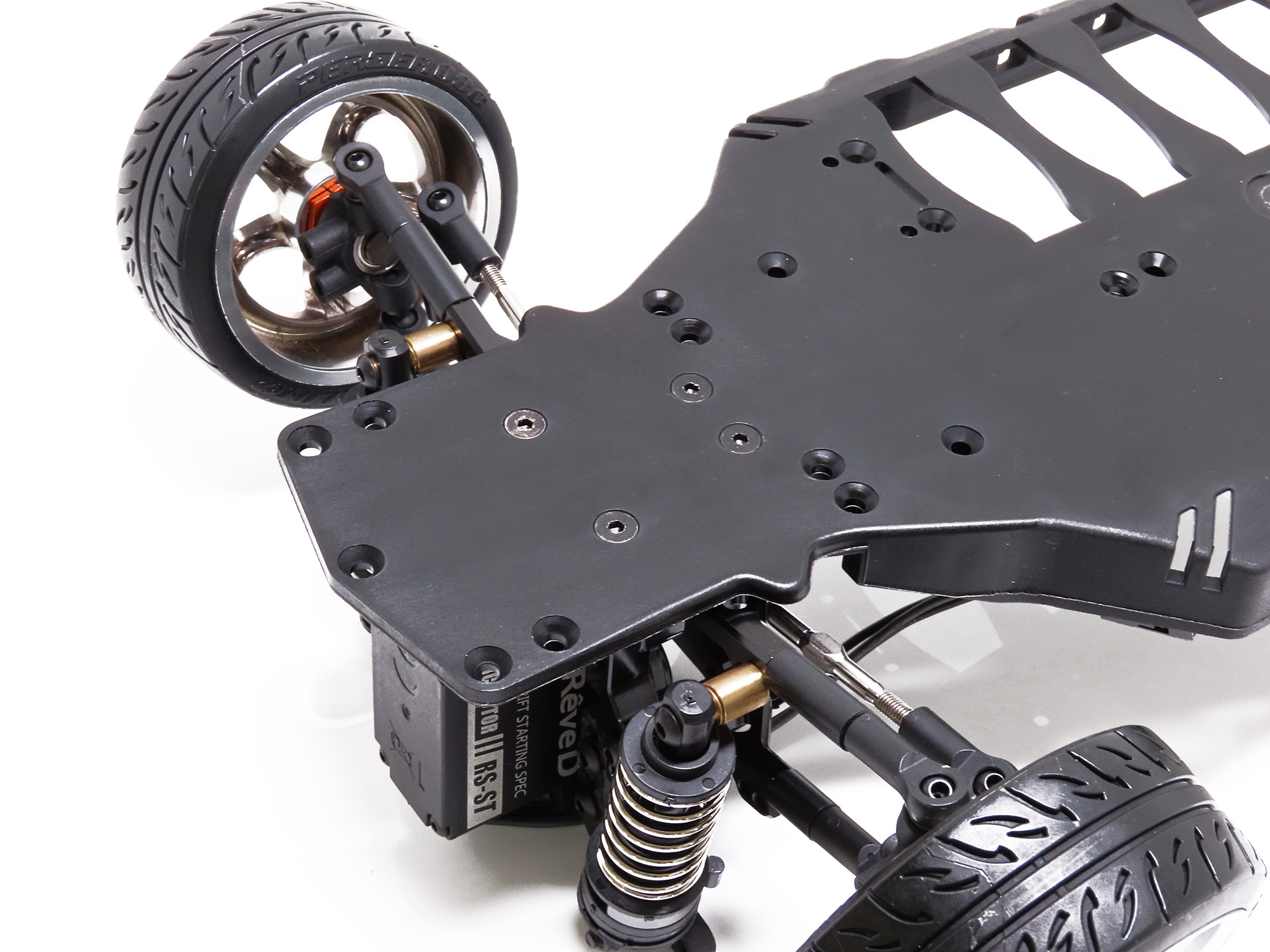

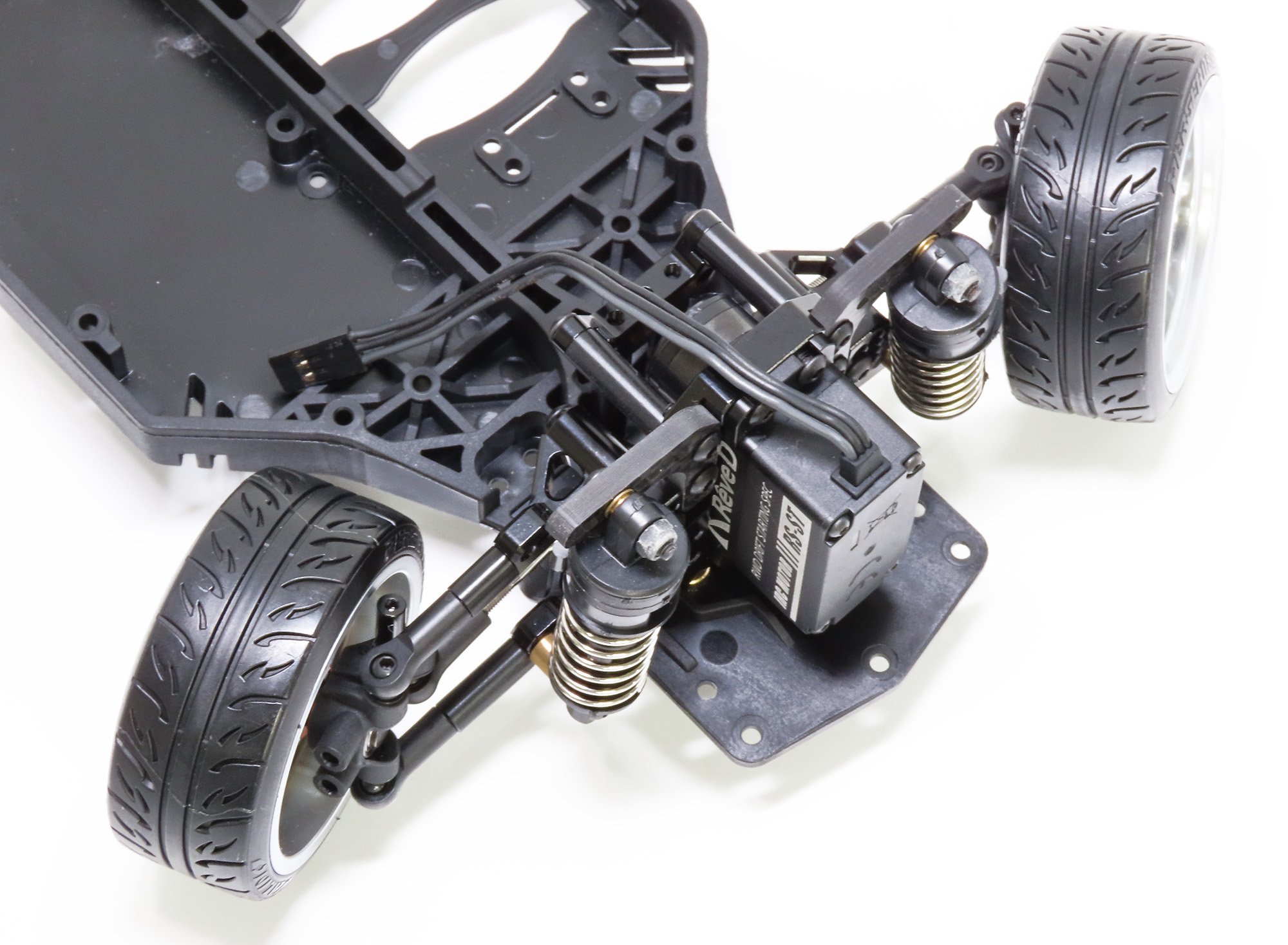

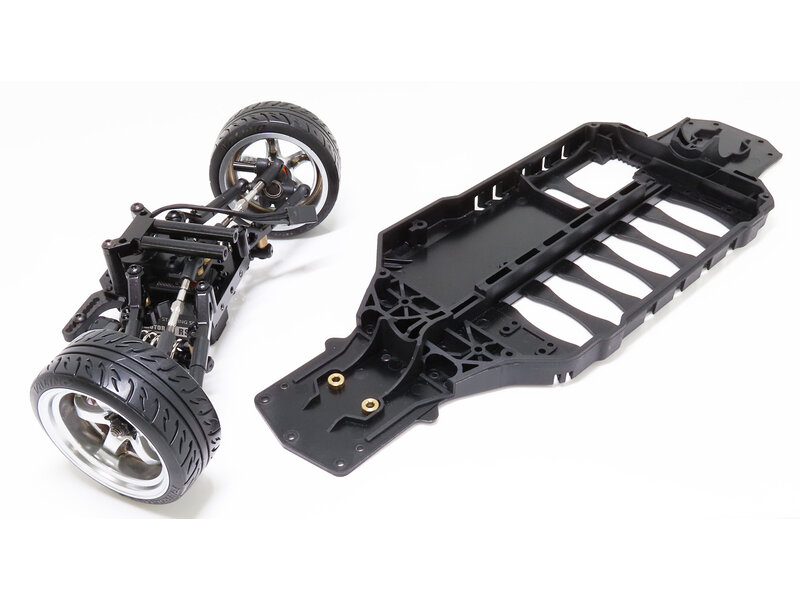

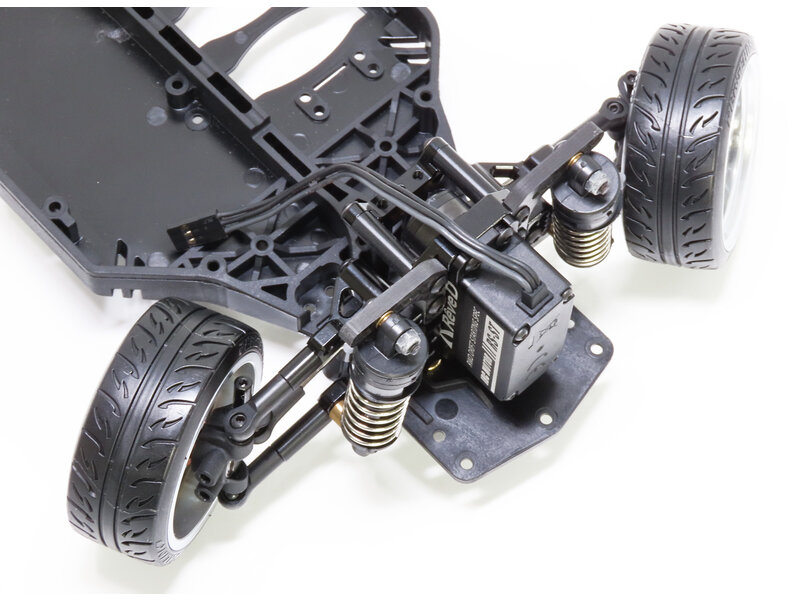

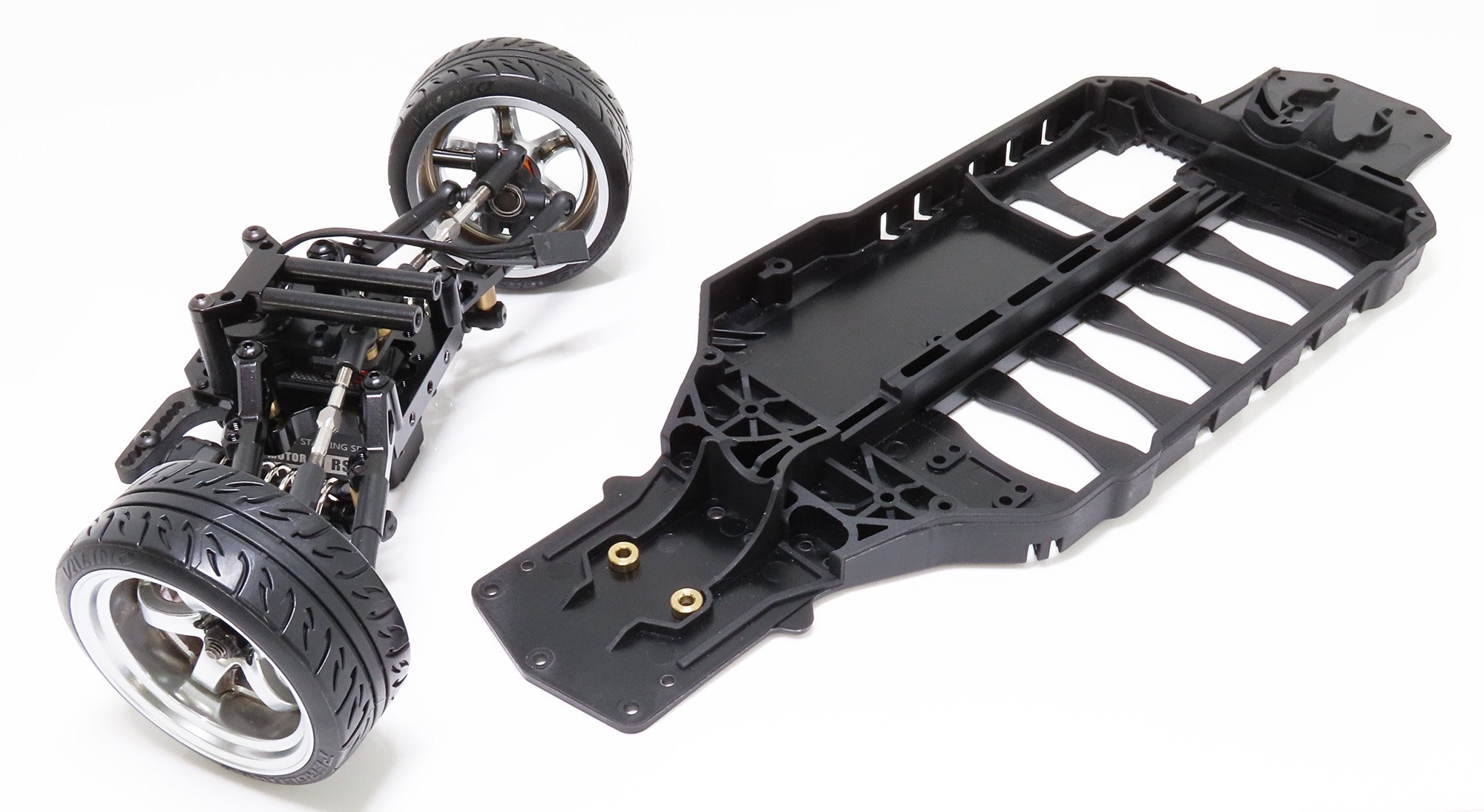

The modular front unit allows it to be easily removed from the chassis with just four screws, providing outstanding maintainability.
The included carbon upper plate can be used to connect the upper deck of a homemade chassis, and can also be used as a mounting plate for the mechanism and ESC.

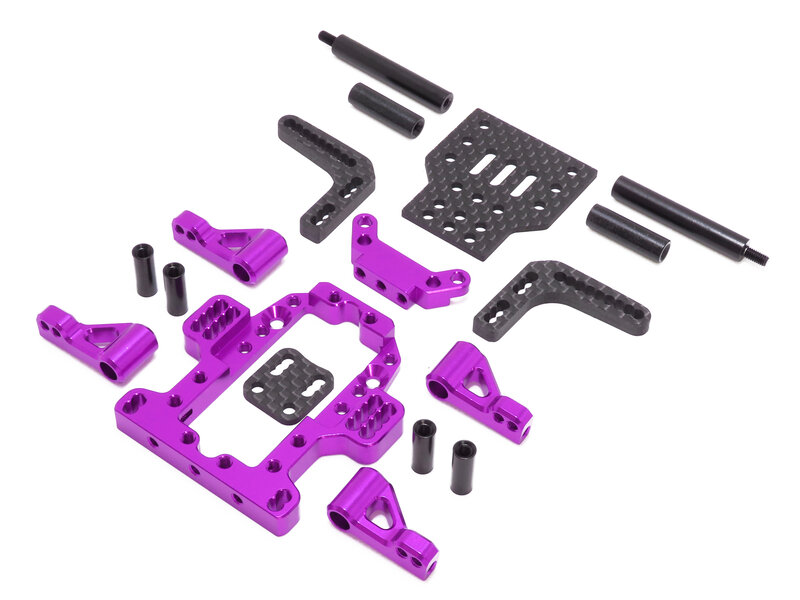

Product configuration:

• Aluminum bulkhead (servo mount)
• Aluminum lower and upper arms (common design)
• Aluminum upper brace
• Carbon extension plate
• 2.0t carbon upper plate
• 4.0t carbon shock tower
• Spacers and screws

Recommended additional parts:

• ReveD front knuckle (D1-415FM)
• TAMIYA SP-1000 high torque servo saver (black)
• Ball ends, pillow balls, turnbuckles and other connection parts
