SkyRC B6AC Neo LiPo Charger 1-6s 10A 60W AC/PD/DC

SkyRC / SK-100200-01 / B6AC Neo LiPo Charger 1-6s 10A 60W AC/PD/DC

A beauty on the outside and a true beast on the inside - that's the B6AC neo. A truly compact but extremely powerful charger that retains the basic functions of the original B6AC V2. An impressive charging power of up to 200W DC or 60W AC is contained in this small housing and thanks to the various ports such as XT60 and USB Type-C, this charger can be used almost universally.

What actually makes the B6AC neo better than its predecessor? In direct numbers, the charging and discharging performance has been increased several times. Of course, this saves a lot of time and the new color display and the new software, which is standard on neo chargers, also give the charger a modern touch. The small, pocket-sized device can easily keep up with the digital power supply. All you need is a few clicks in the menu and you're ready to go. It offers an optimal voltage of 2-27V and an adjustable current flow of 1-10A.

The B6AC neo also uses a proprietary rectifier circuit to efficiently convert DC power into safe DC power for charging a battery. And the integrated MCU precisely controls the charging process to minimize power loss. The gallium nitride built into the device also ensures consistent performance while, compared to silicone, it also provides better heat dissipation and lower energy loss.

Reduce your time charging batteries to free up more time for actual fun!

Features:

• 60W AC charging power
• 200W DC charging power
• With 1.77'' color display
• Increased efficiency through the use of gallium nitride (GaN) instead of conventional silicone
• Small format - ideal for every trouser pocket

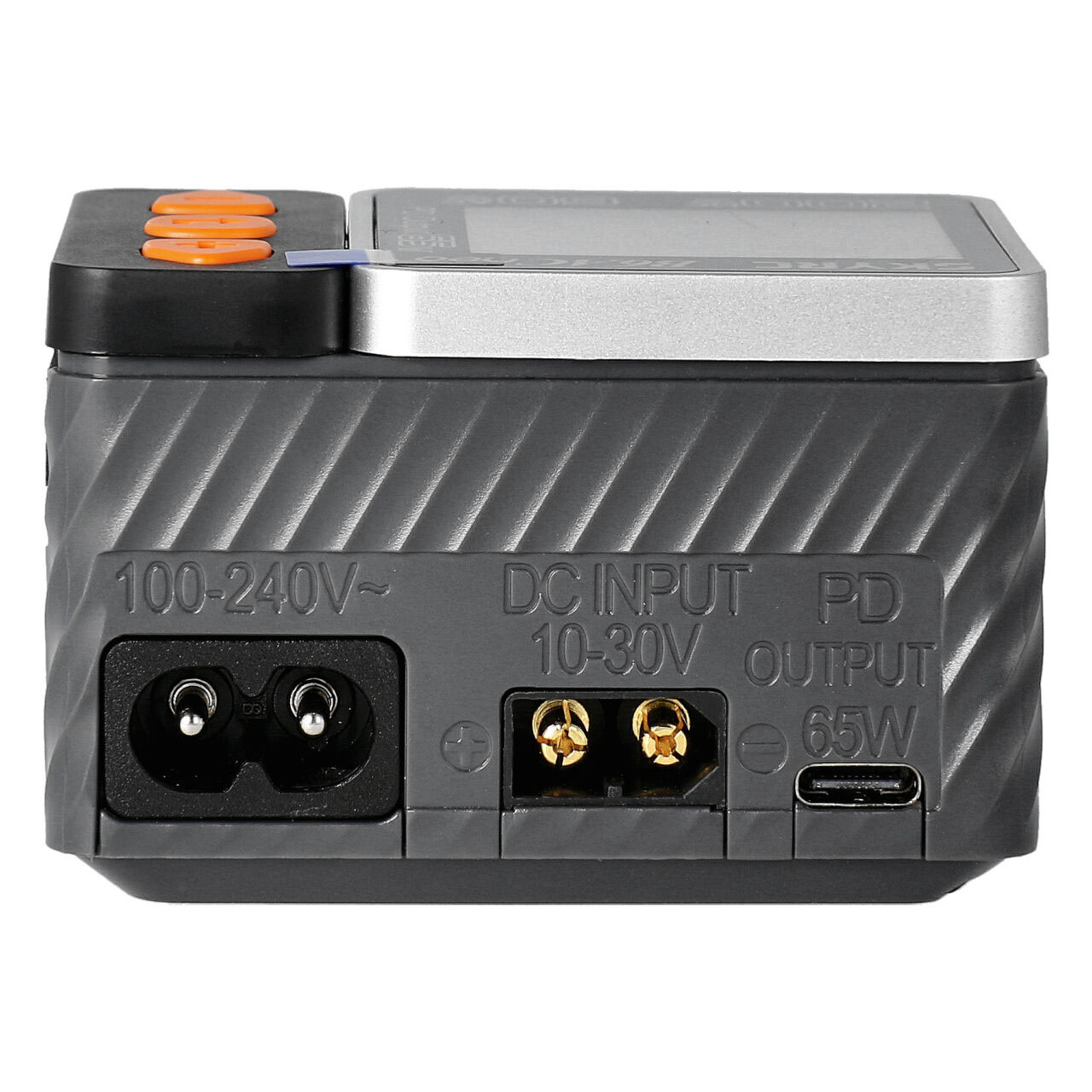

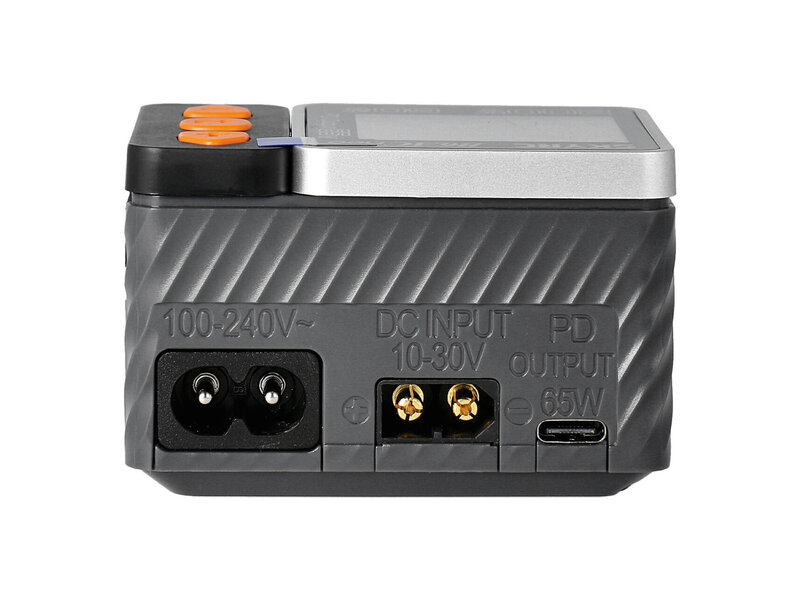

• Versatile in use thanks to XT60 and USB Type-C ports

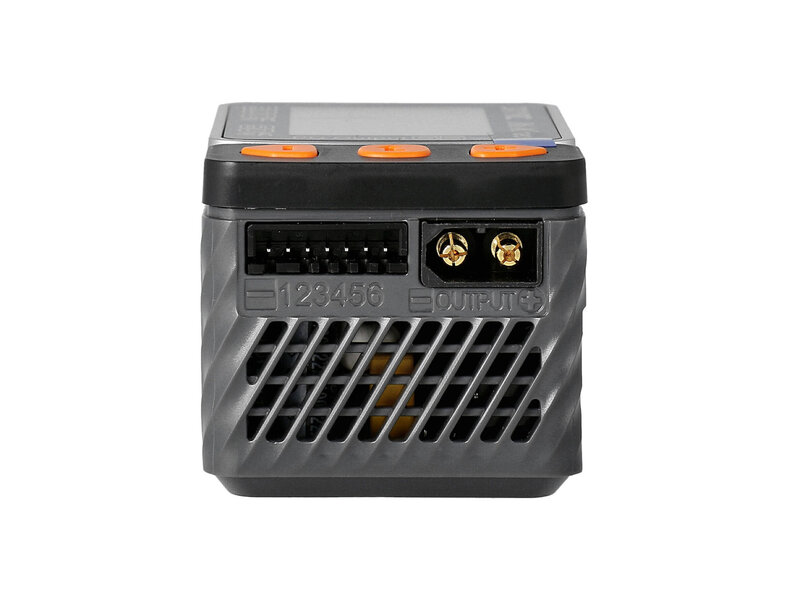

• Includes balancer connection for stronger discharge
• Integrated battery tester program
• With PD/QC3.0 fast charging
• Compatible with Charger Master software

Specifications:

• Input Voltage AC: 100 - 240V 50/60Hz
• Input Voltage DC: 10 - 30V
• Charging Power: AC max. 60W / DC max. 200W / USB-C/PD max. 65W
• Discharging Power: max. 19W (LiPo/6S)
• Charging Current: 0.2 - 10.0A
• Charging (QC3.0 / PD): 5V=3A, 9V=3A, 12V=3A, 20V=3.25A, Max. 65W
• Discharging Current: 0.1 - 2.0A
• Balancing Current: max. 0.5A
• Trickle Charge: max. 0.2A & OFF
• Cells: LiPo/LiFe/LiIon/LiHV 1 - 6S
• Cells: NiMH/NiCd 1 - 15S
• Cells: Pb 3S / 6S
• Weight: 150g
• Dimensions: 70.6x50.6x46mm

Delivery:

• 1x B6AC neo charger
• 1x Manual
• 1x AC power cord

MANUAL

Specifications:

Size and Weight





Shell material: PC-ABS V0
Size: 70.6*50.6*46mm
Weight: 150g



Display

Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K



Power

AC Input Voltage: 100V～240V 50/60Hz
DC Input Voltage: 10-30.0V

Charger power:
DC：200W
AC：60W
QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W

Discharge power:
19W based on 6S(4.2V/S)

Battery

Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S



Charge and Discharge

Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.2-10.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV: Max. 500mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Dishcarge
Pb: Normal, AGM Charge, Cold Charge, Discharge
