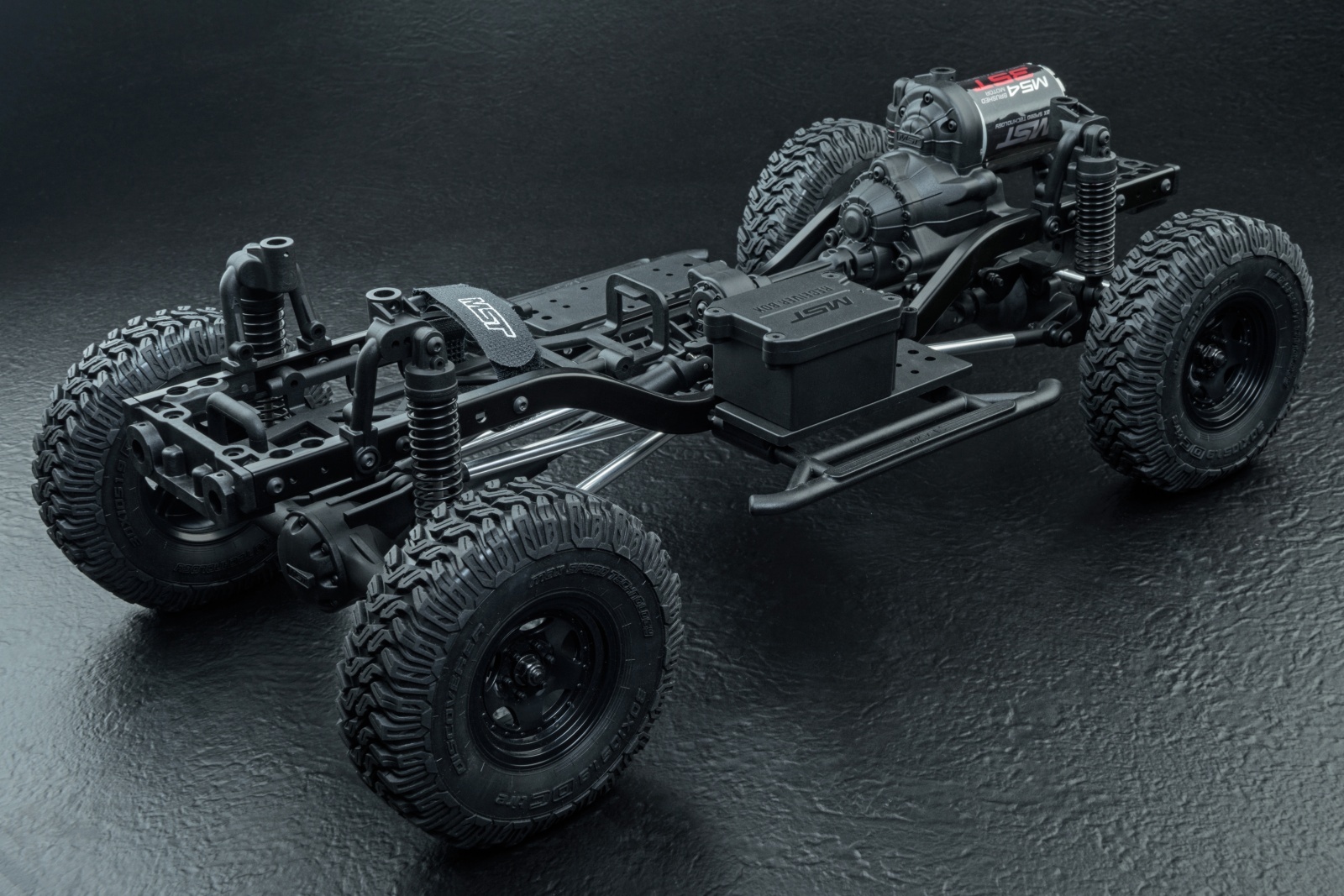

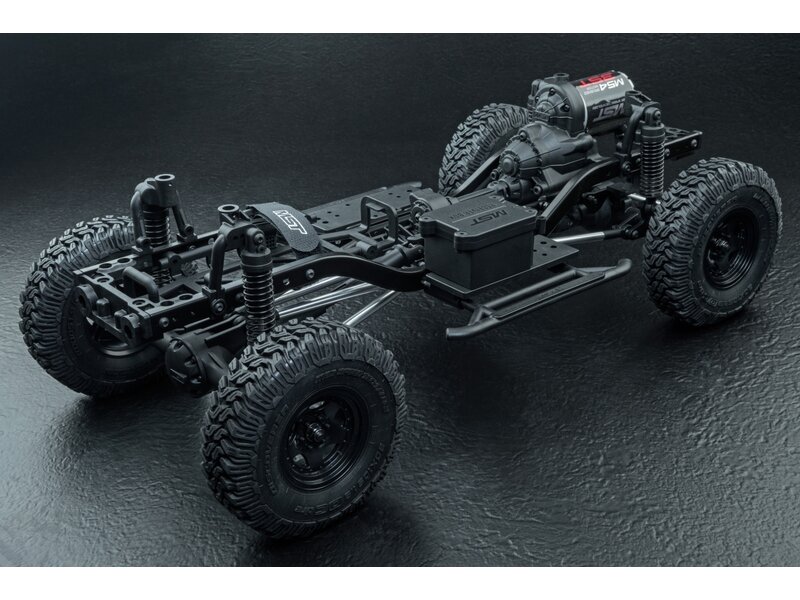

MST CFX-WS 1/8 4WD Off-Road RTR / Body: DC1 (Land Rover Discovery) - Dark Blue
Nog niet gewaardeerd | Schrijf je eigen review
€ 399,00
€ 359,10
Incl. btw
MST / 531553DB / CFX-WS 1/8 4WD Off-Road RTR / Body: DC1 (Land Rover Discovery) - Dark Blue
Op voorraad 2 stuks
Artikelnummer:
531553DB
MST / 531553DB / CFX-WS 1/8 4WD Off-Road RTR / Body: DC1 (Land Rover Discovery) - Dark Blue
Specification:
The brand new CFX-WS chassis is come with the front and rear axle design, which has the great ability in both climbing and reality. The full metal gears on the chassis have good transmission efficiency and durability. The newly designed SA25 axle consults realistic simulation and good performance. The chassis is concept from the actual vehicle configuration, with front-mounted motor and rear-mounted battery, for the great climbing performance and body balance ability. The chassis is equipped with brand new DC climbing tires for good grip and exterior.
- Length: 527mm
- Width: 224mm
- Height: 252mm
- Wheelbase: 313mm
Features:
- FRONT AND REAR SA25 AXLE
- OIL SHOCKS
- PLANETARY GEARBOX & DUAL SLIPPER CLUTCH
- ALL METAL TRANSMISSION GEAR SET
- 1.9" WHEEL & REALISTIC SCALE TIRE
- ALUM. 4-LINK SUSPENSION
- FULL BALL BEARINGS
- HEAVY DUTY CVA SHAFT
- REALISTIC STEEL C-CHANNEL FRAME
- GREAT STEERING ANGLE
- GEAR RATIO : 1:31.7 ~ 1:46.7
- TIRE WIDTH/DIAMETER : 30X105mm
SA25 SINGLE PIECE AXLE
SA25 front and rear axles are integrated design for a realistic shape and good strength.
It is 25mm wider than the MSA axle, and longer ground clearance, and the better traverse ability.

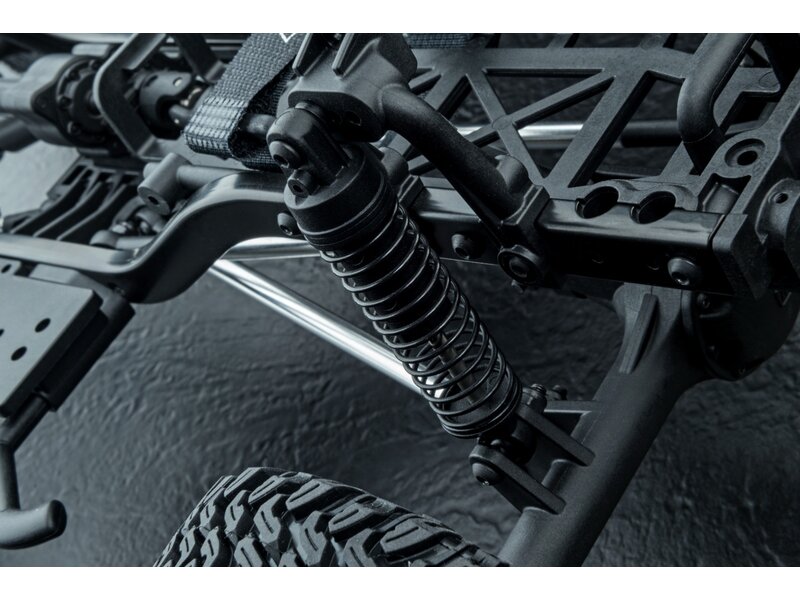

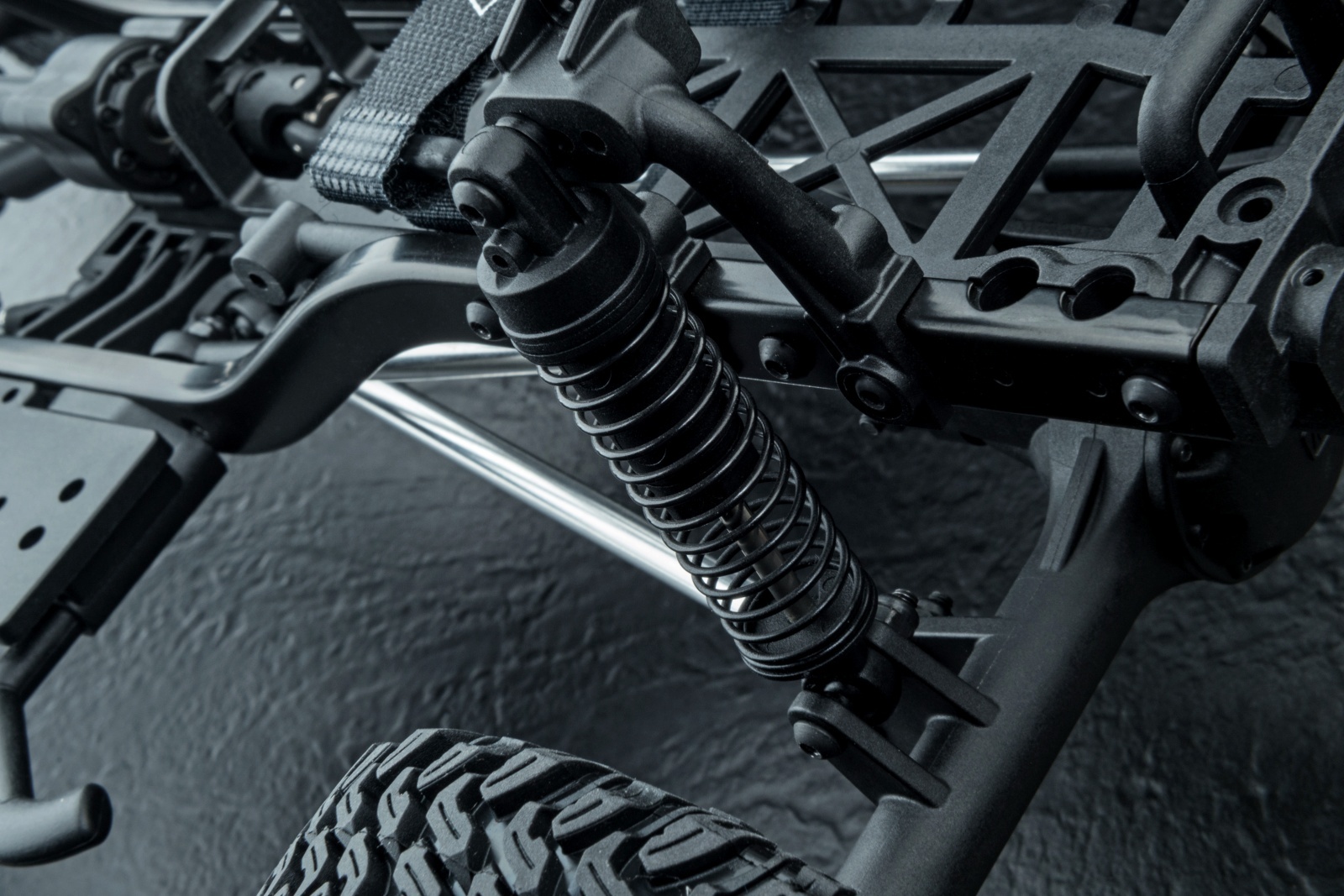

OIL SHOCKS
Lightweight and solid hydraulic shocks absorb the upside from the road and maintain the stability of the vehicle while driving. The spring adjustment buckle can be adjusted according to driving needs.
.jpg)
PLANETARY GEARBOX & DUAL SLIPPER CLUTCH
The planetary gear design provides the efficient transmission and the characteristics of a high reduction ratio for the power output level stable and powerful.
The dual slipper clutch design increases the surface friction also provides a more accurate holding power.
The m0.6 pitch spur gear is capable for the high torque applications.
ALL METAL TRANSMISSION GEAR SET
The car is equipped with the high-strength metal gears for good transmission efficiency and durability.

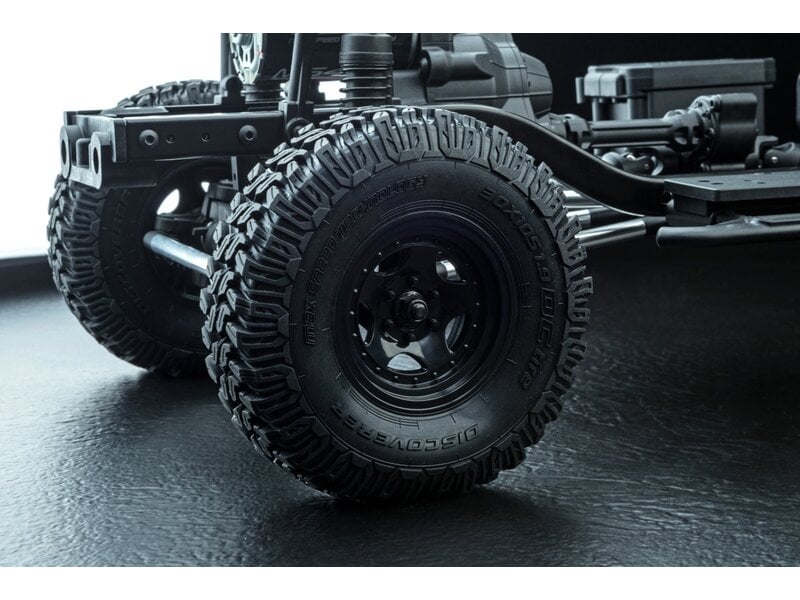

1.9" WHEEL & REALISTIC SCALE TIRE
The 1.9” realistic wheel is good in both durability and appearance.
The large size as a true crawler tire by the mix-materials has the excellent off-road performance also keep the on-road driving ability.
Large blocks design provides excellent bite when the going gets tough!

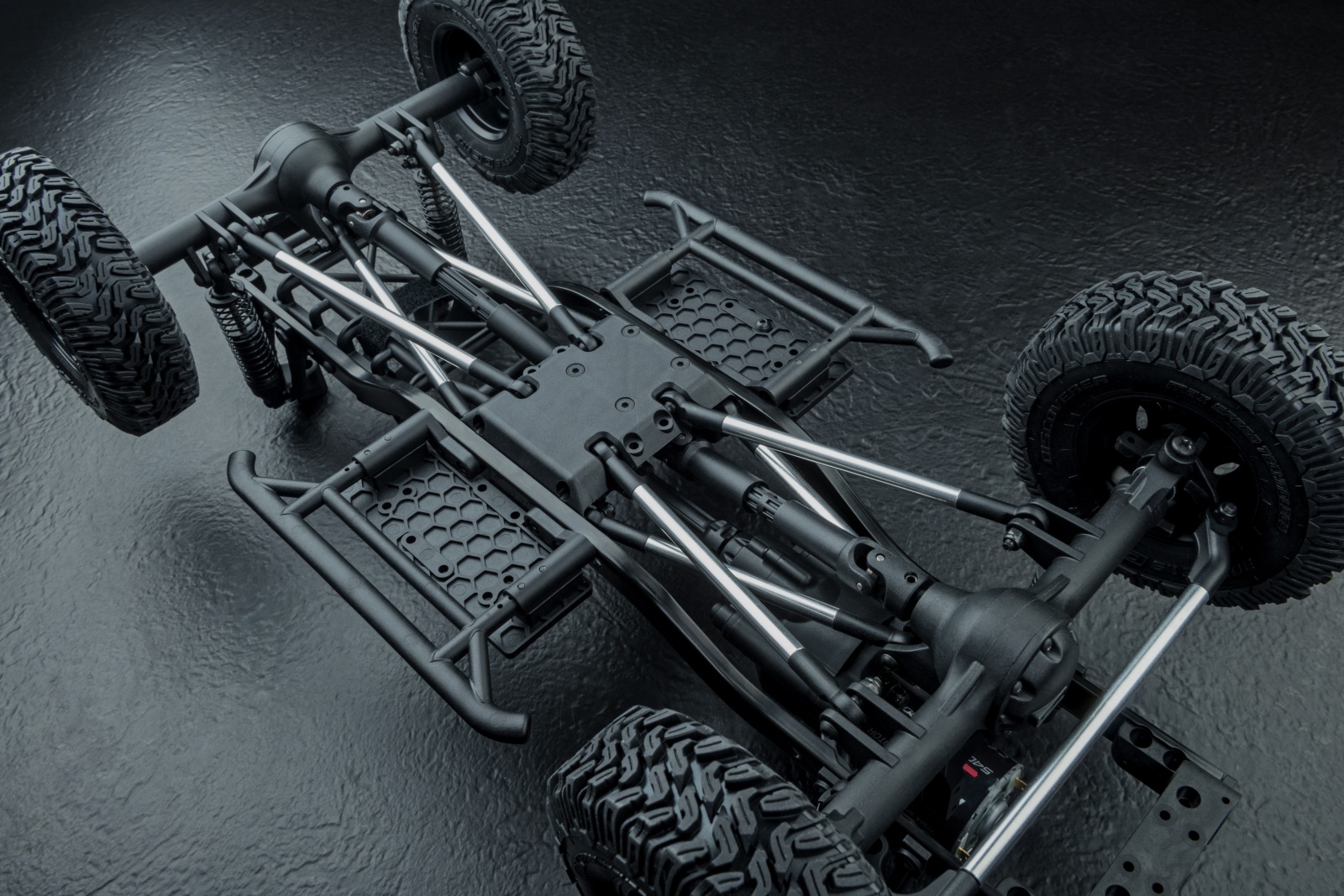

ALUM. 4-LINK SUSPENSION
The aluminum links has good durability and rigidity. The Four-link suspension system is good for climbing ability.
BALL BEARINGS SET
The full ball bearing set can reduce the operating resistance and provide better operating efficiency and the longer operating time.
HEAVY DUTY CVA SHAFT
The steel CVA drive shaft is good at smooth transmission and better efficiency.
.jpg)
REALISTIC STEEL C-CHANNEL FRAME
The realistic steel C-channel frame is endurable and real. The hex screw links the chassis and crossmember frames for the good torsional stiffness.
The multiple shock mount positions are adjustable for the best performance by the player’s request.
The streamlined design is easy to installation and maintenance.

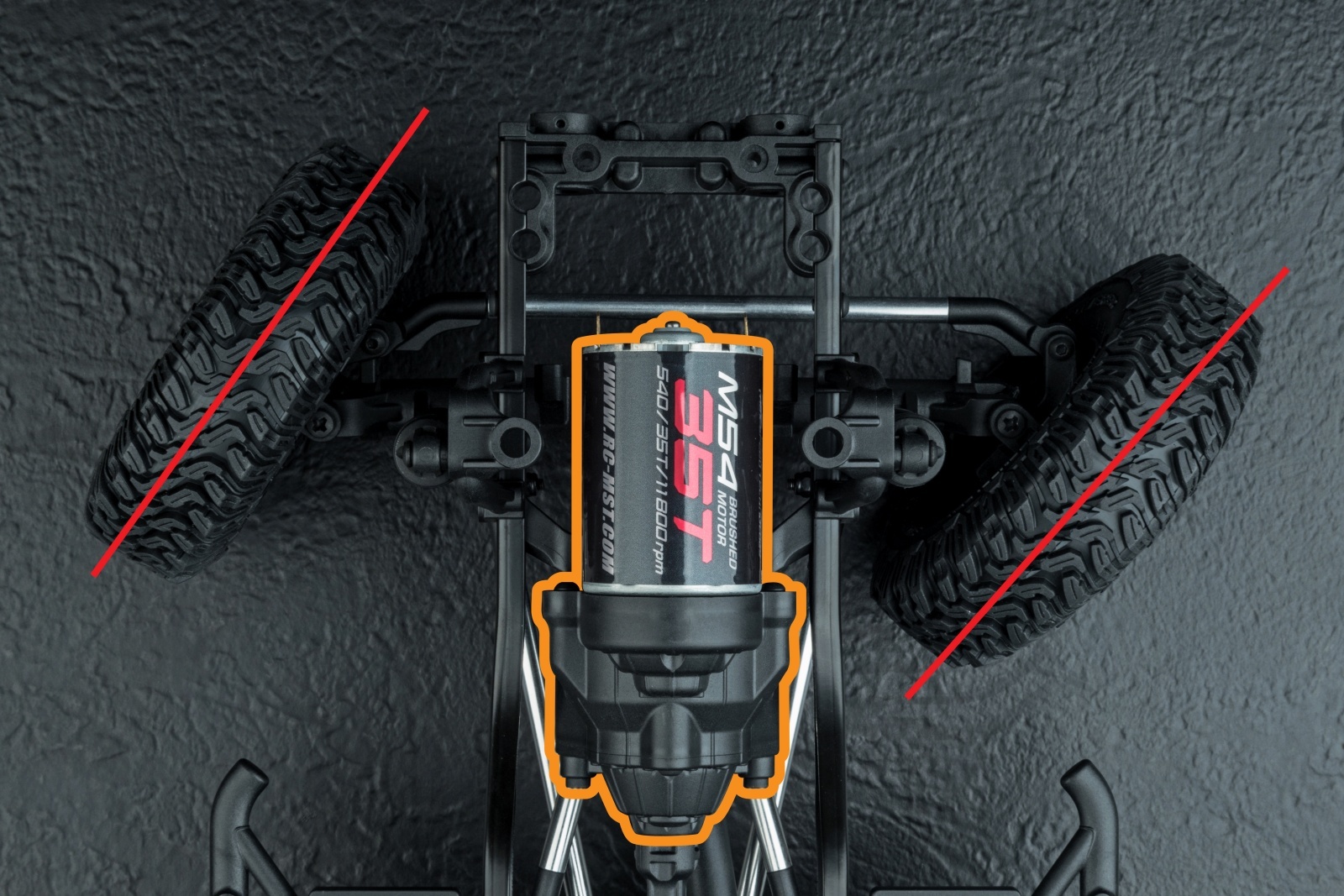

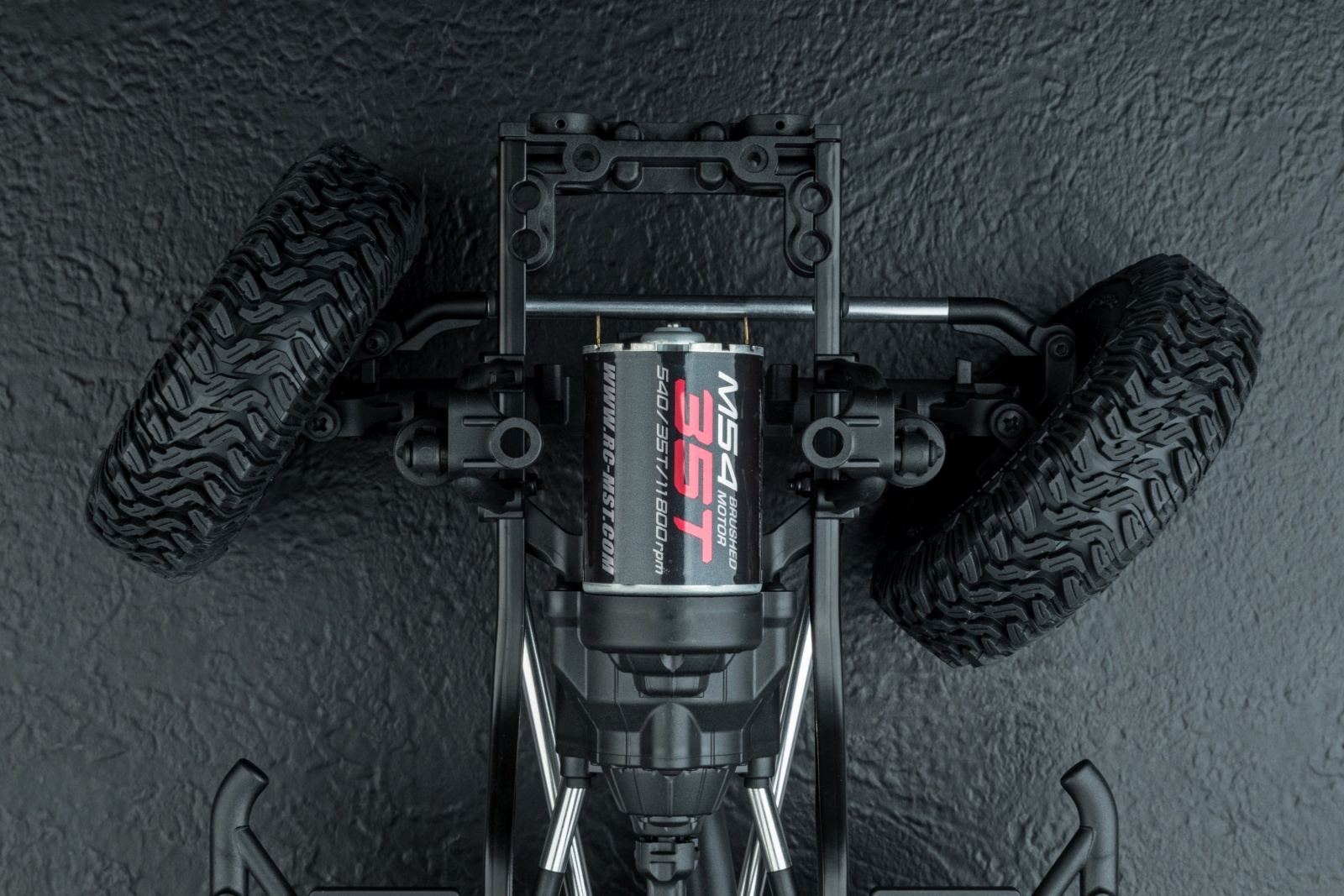

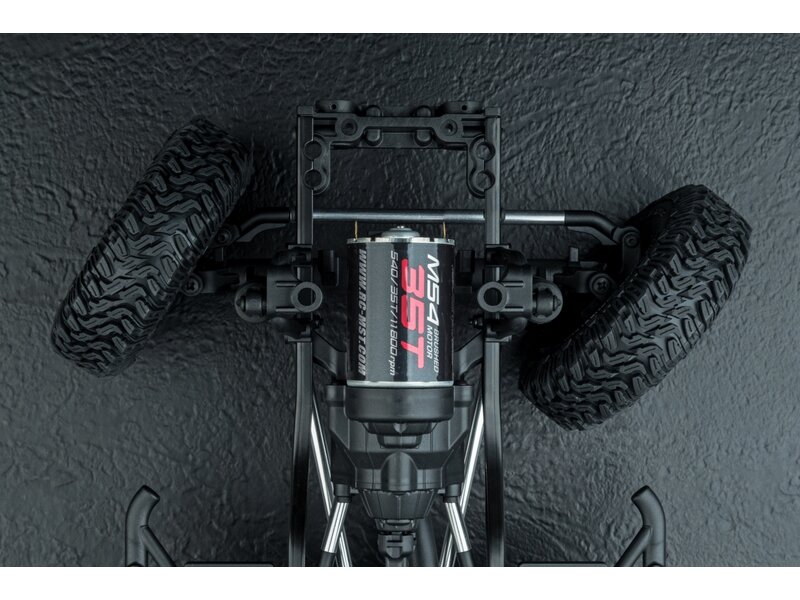

REALISTIC FRONT MOTOR POSITION & GREAT STEERING ANGLE
The front motor structure as the real car keeps the space for personal preferring interior settings.
It has the great steering angle and extreme smallest radius of gyration.

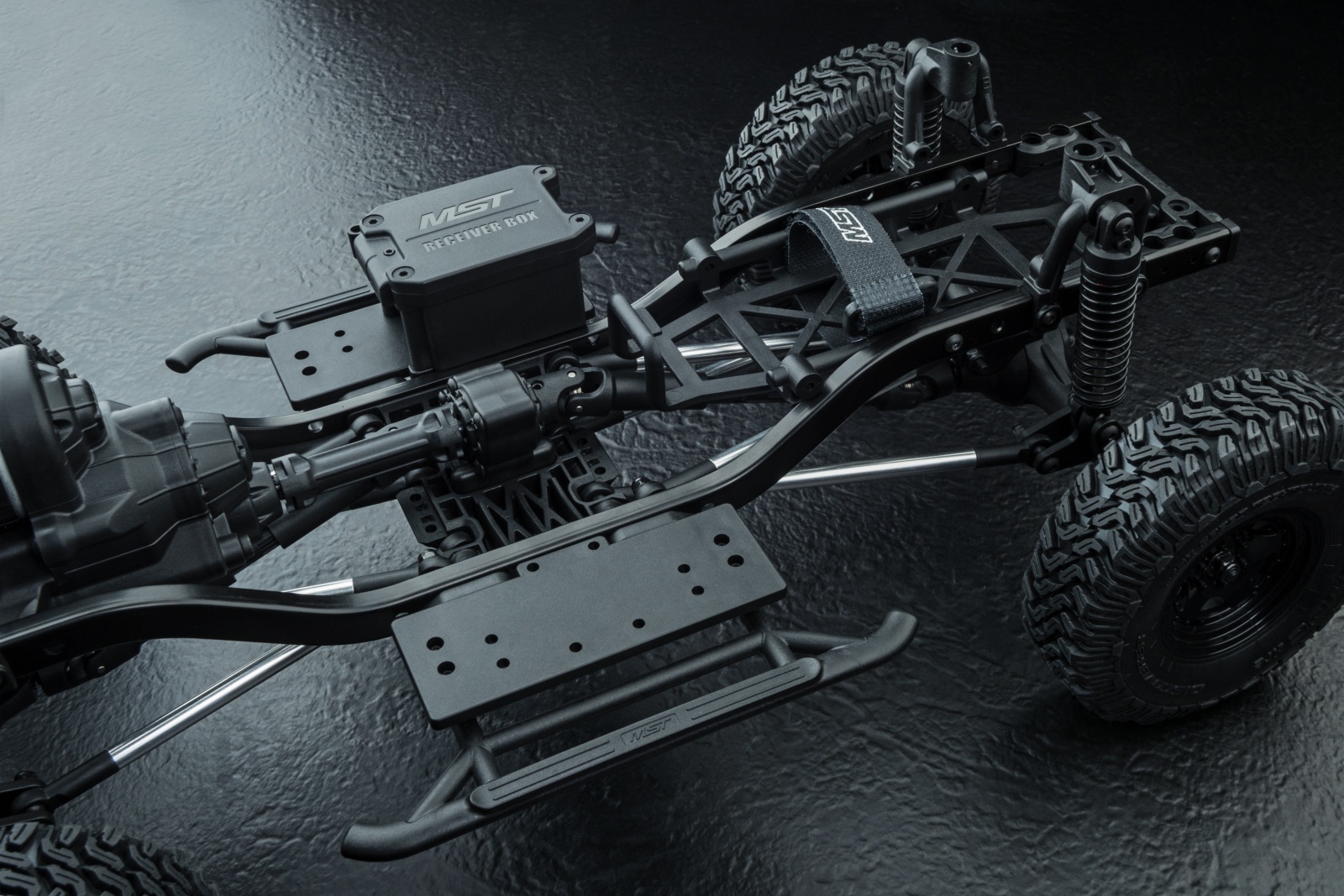

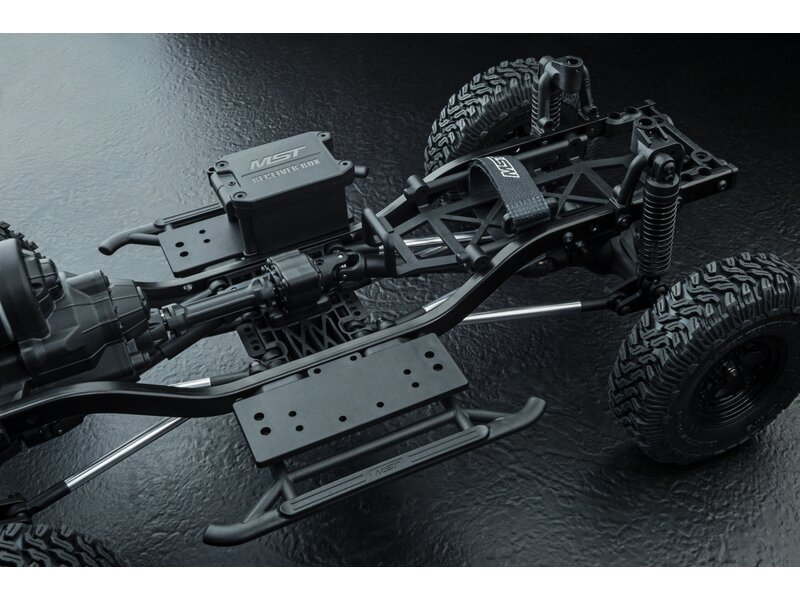

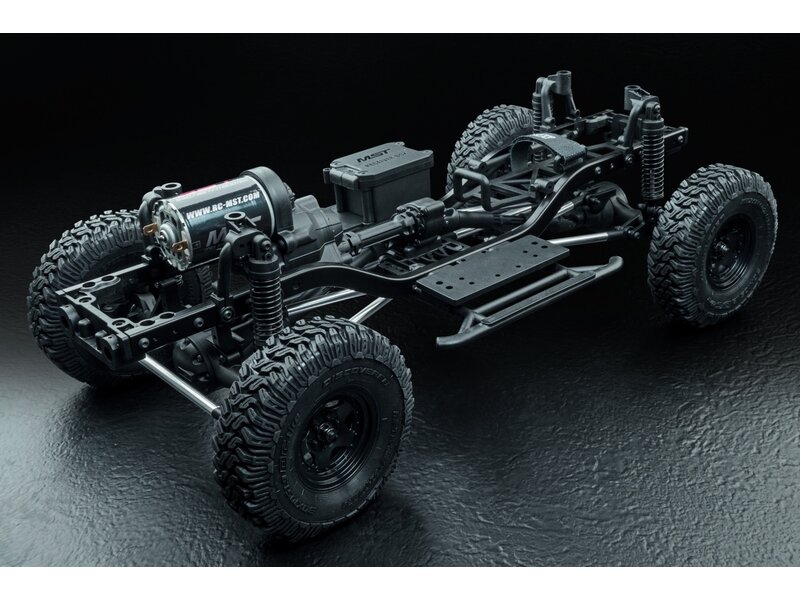

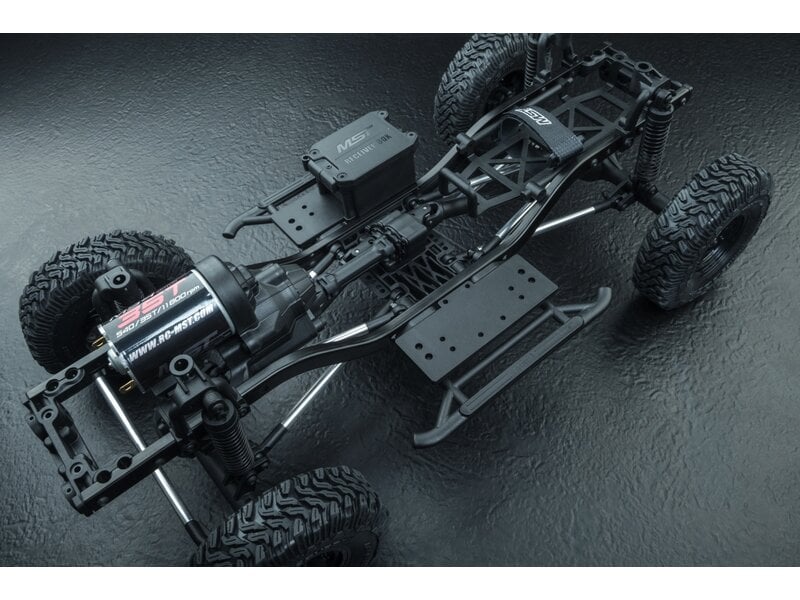

CHASSIS
The chassis is configured by front motor and rear straight battery mount as same as real car. The left and right independent electrical equipment boards support setting the electrics positions freely, also have unlimited expansion possibilities.
