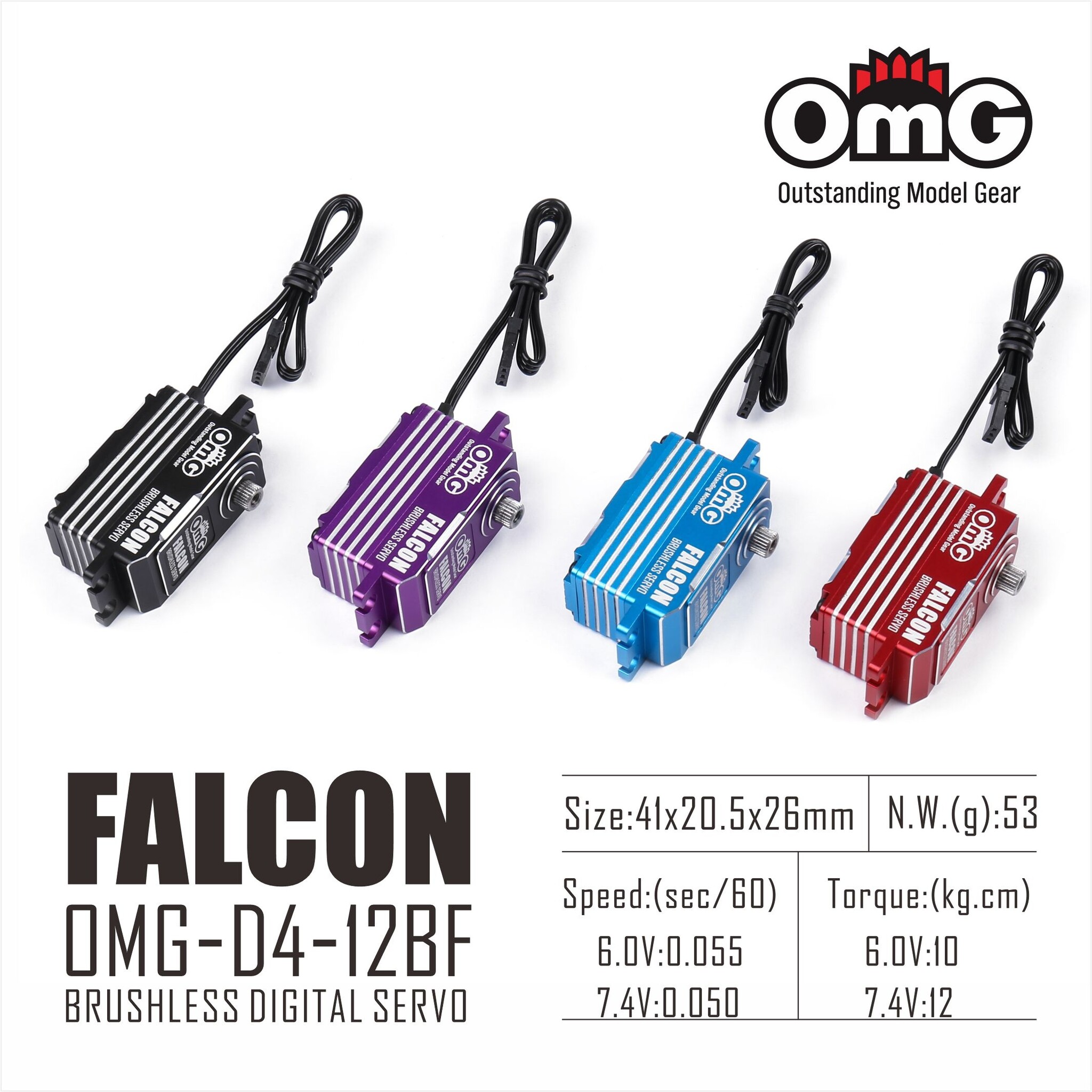

RC OMG Falcon Full Metal Brushless Digital Low Profile Servo - Red
RC OMG / D4-12BF/RD / Falcon Full Metal Brushless Digital Low Profile Servo - Red
RC OMG / D4-12BF/RD / Falcon Full Metal Brushless Digital Low Profile Servo - Red
Specifications:
- Operating Voltage Range: 4.8 -8.4v
- Bearing Type: Dual Ball Bearings
- Speed: 4.8v (0.065/s) , 6.0v (0.055/s) , 7.4v (0.050/s) 8.4v (0.045/s)
- Torque: 4.8v (8 kgf.cm) , 6.0v (10 kgf.cm) , 7.4v (12 kgf.cm) 8.4v (14 kgf.cm)
- Limit angle: 120°± 10°
- No-load Current (mA): 550max
- Signal control method: PWM analog digital control
- Connector Wire Gauge: 22 AWG Black Wire
- Connector Type: JR
- Frequency: 1520us/333Hz
- Shaft: 5.9 * 25T
- Tooth: 25T
- Size: 41mm x 20.5mm x 26mm
- Weight: 53g
For: 1/10th drifting & touring cars, characterized by fast response speed and moderate torque. Parameters can be tuned according to the driver's habits
Material: Aluminum Case
Color: BK/RD/VT/DB
Type: Digital Brushless High Voltage Servo
Gears: Stainless Steel
Brushless Motor
Digital precision provides great accuracy and performance
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: [email protected]
OMG-D4-12BF
Drift recommendation:
--Gain:12-17
--Damping:180-230
--Power:800-900
Servo feels powerful but a bit less predictable due to higher speed.
Touring car recommendation:
--Gain:25+
--Damping:50-80
--Power:900+
Mid gyro gain 50-60% Normal gain 10-20 Damping 180 Power 900
Low gyro gain 40-50% High gain 20-25 Damping 180 Power 950
Low gyro gain here 42% Beginner gain 20-30 Damping 180 Power 950
