Overdose High Performance Shock Spring Perfect Set (6 types x 2 pcs)

Overdose / OD2505 / High Performance Shock Spring Perfect Set (6 types x 2 pcs)

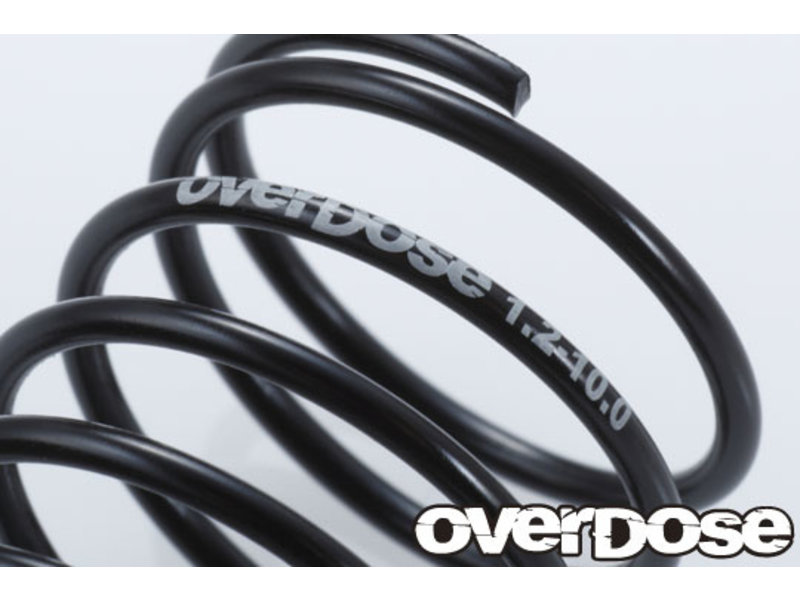

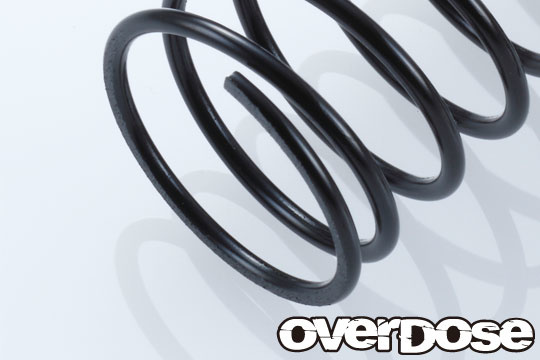

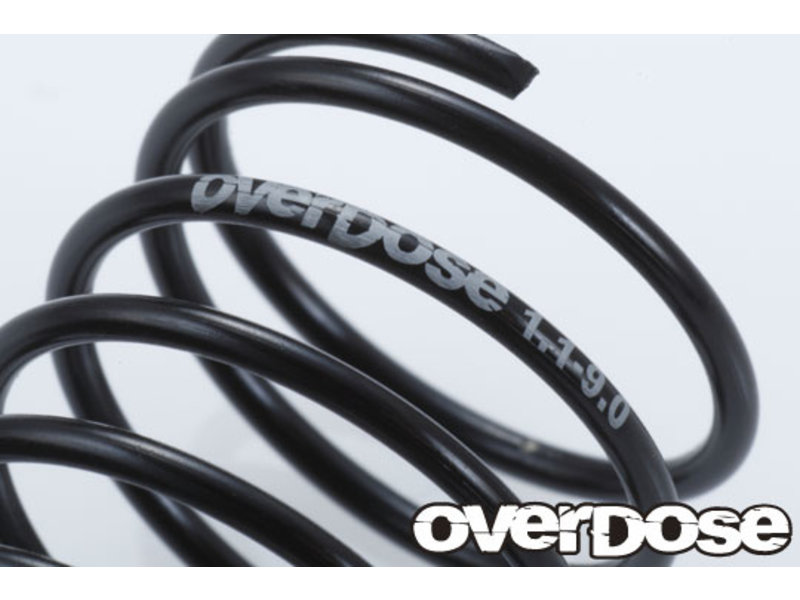

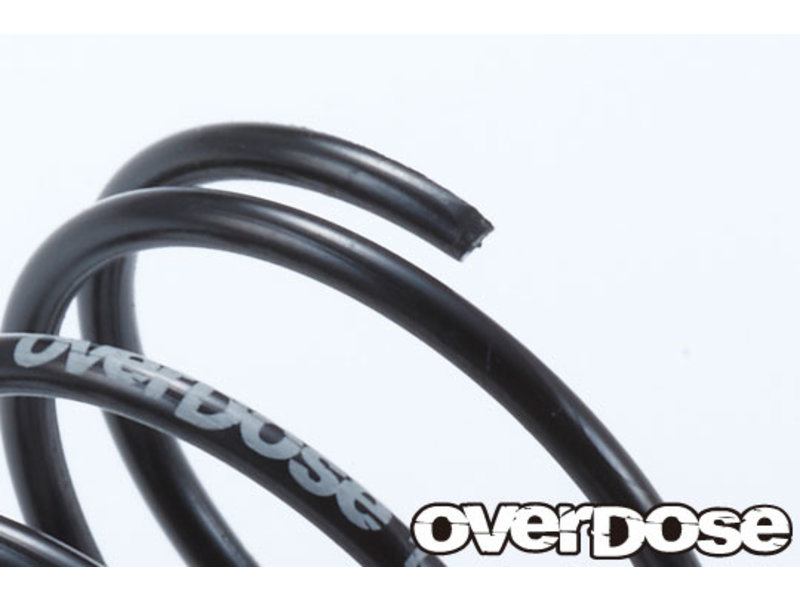

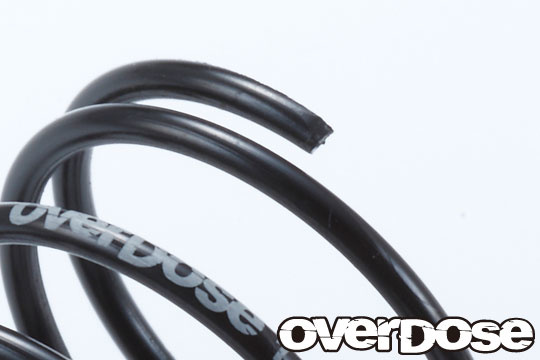

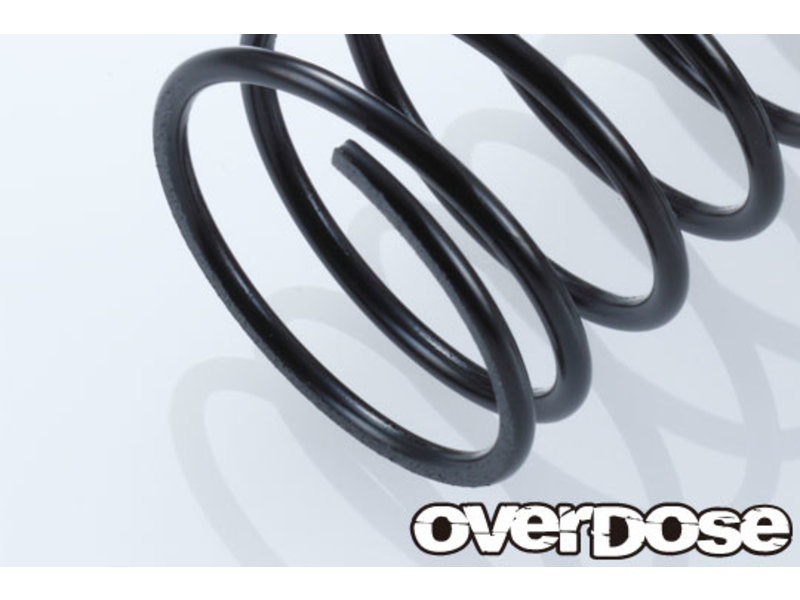

OD spring set is now available ! The material of spring steel is excellent fatigue resistance. The spring end has semi open end with a slight gap to reduce surface pressure and reliably capture the track surface over the entire stroke. In addition, the spring has taken setting process. Provides stable spring characteristics. Laser marking of each spring specification and Overdose logo on the side of the spring ! It is an OD commitment. The wire diameter φ1.1 has three types of total windings of 9, 8, and 7 coils, and the wire diameter φ1.2 has three types of total turns of 10, 9, and 8 coils, and the free length is 30 mm. We also have a complete set with all springs.
※1 The setting process is a process performed to improve the set resistance and obtain stable spring characteristics.
