The fusion of RDX and VX-DOCK ZERO.
The birth of the competition spec M chassis!

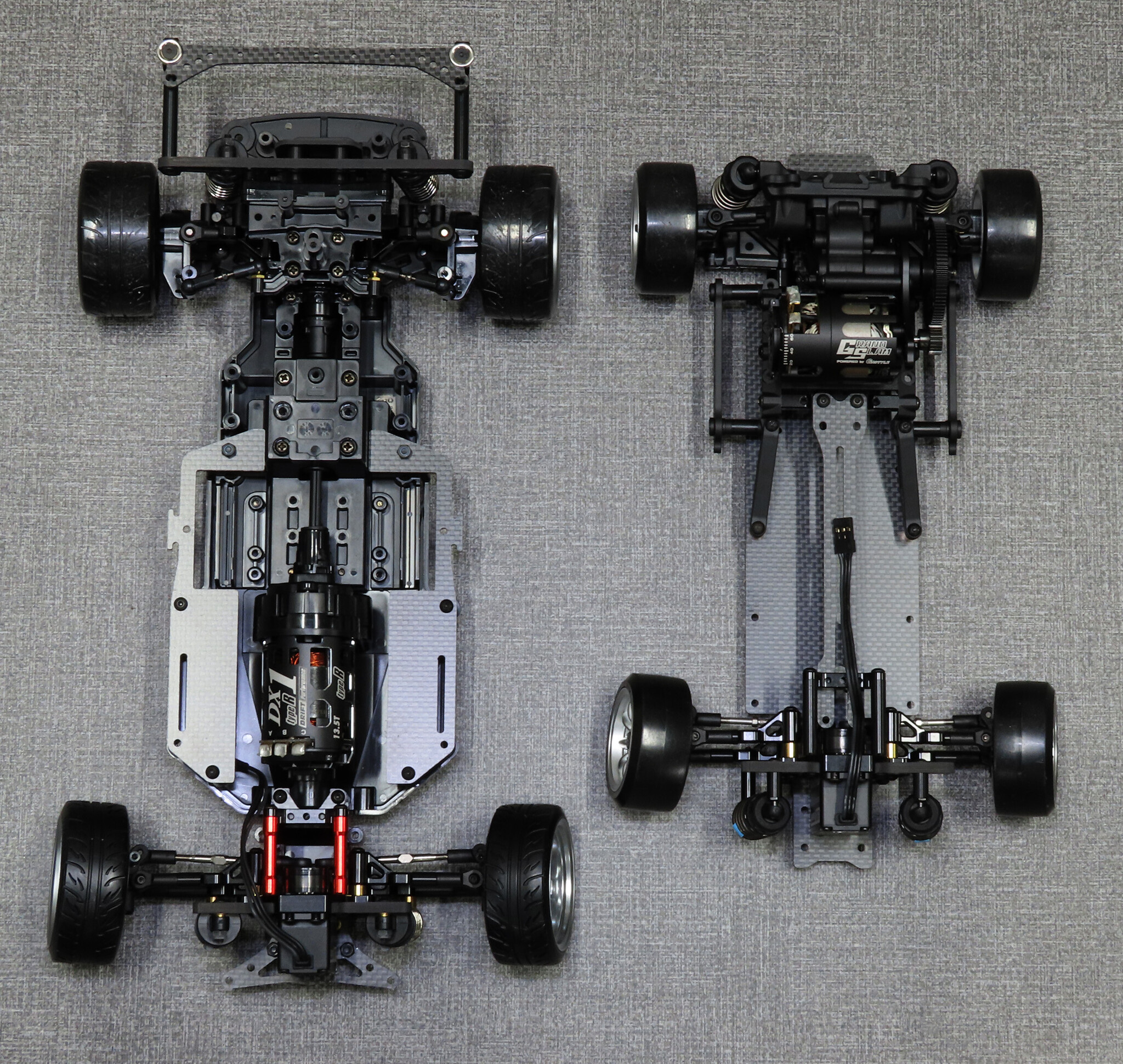

The M-competition for RDX conversion kit

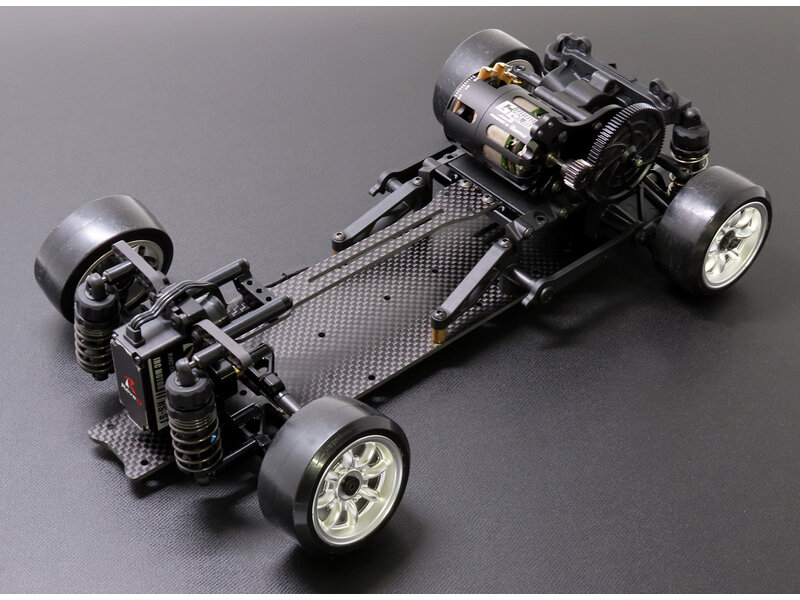

uses the integrated front unit "VX-DOCK ZERO" and a carbon chassis and upper deck compatible with wheelbases of 210mm/225mm/240mm. By combining it with the RDX drive unit, battery holder, and front knuckle (recommended), it delivers driving performance on par with that of a competition model, despite being an M size.

Conversion kit product configuration

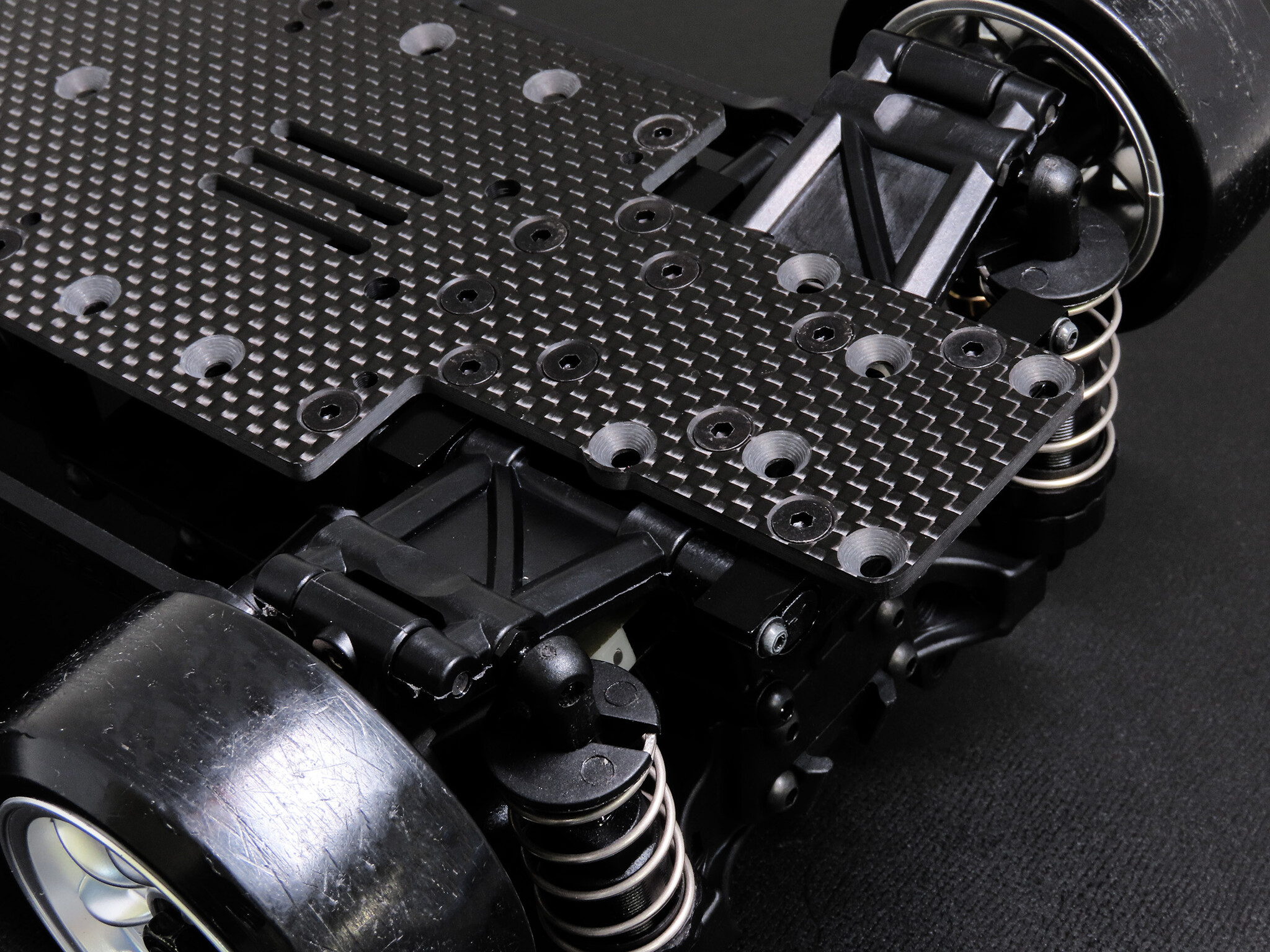

• 2.5t carbon main chassis
• 2.0t carbon upper deck
• Aluminum bulkhead
• Aluminum upper brace
• 4.0t carbon shock tower
• Aluminum upper deck brace
• Aluminum dual purpose arm (lower & upper)
• Carbon extension plate for high torque servo saver

M chassis commitment

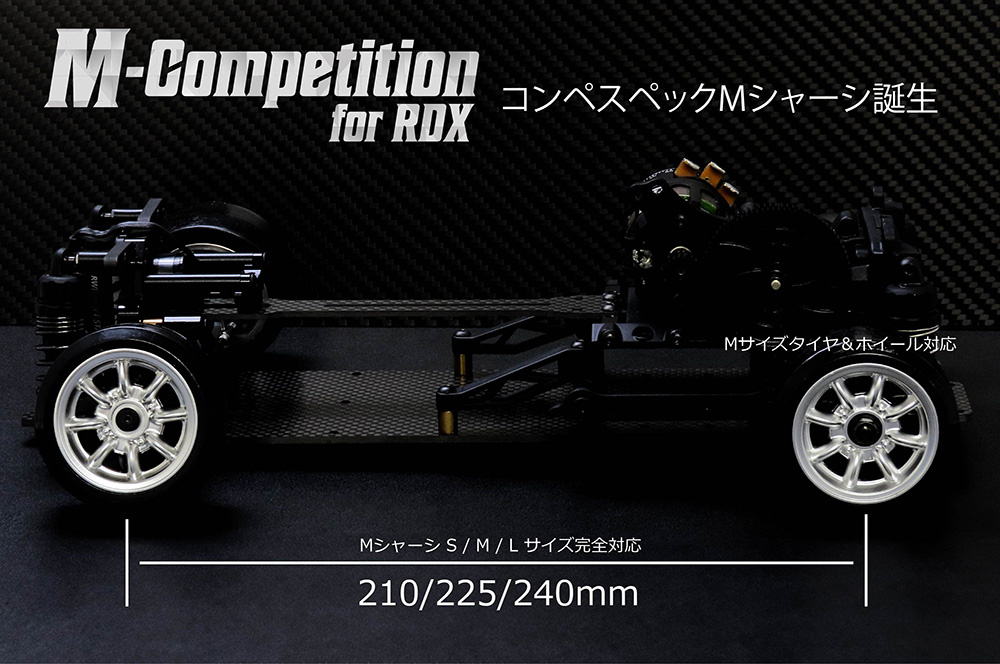

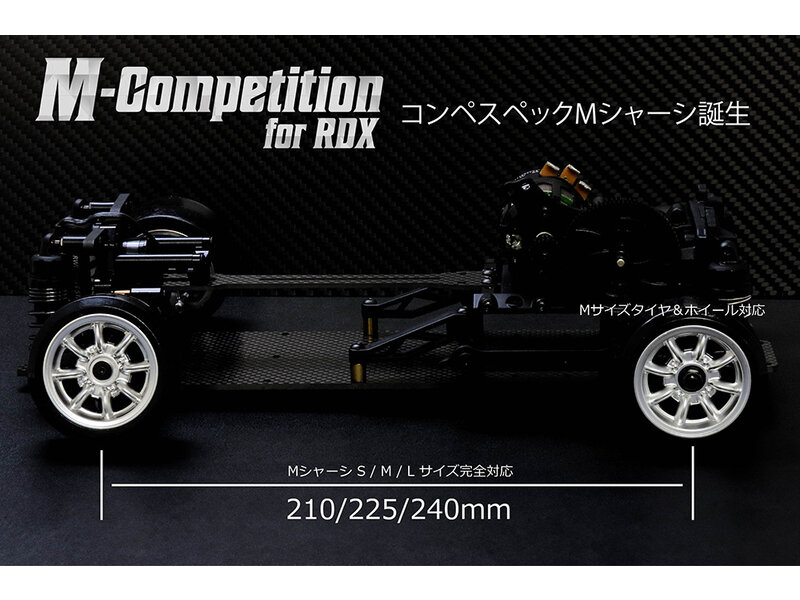

• Compatible with wheelbases of 210 / 225 / 240mm.
• M size wheels and tires can be used.

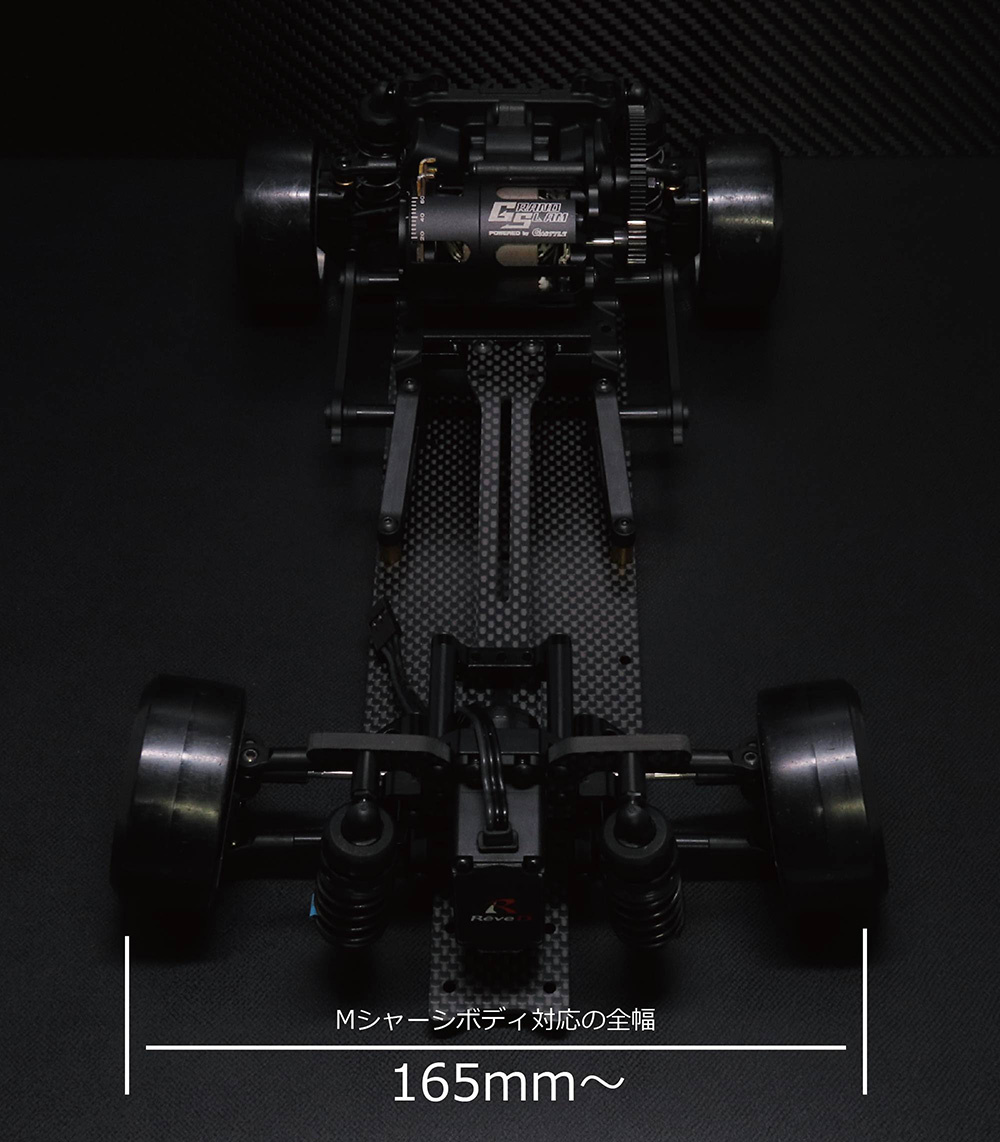

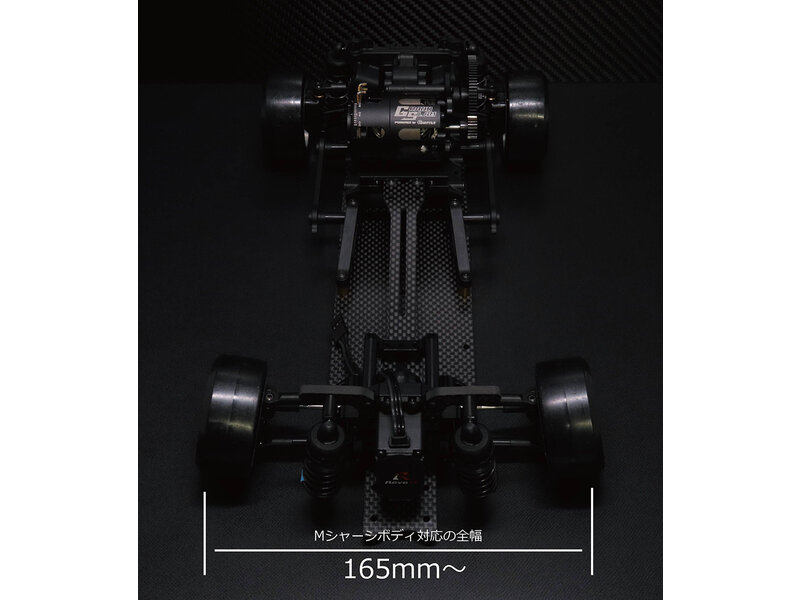

• Minimum overall width of 165mm compatible with most M size bodies.

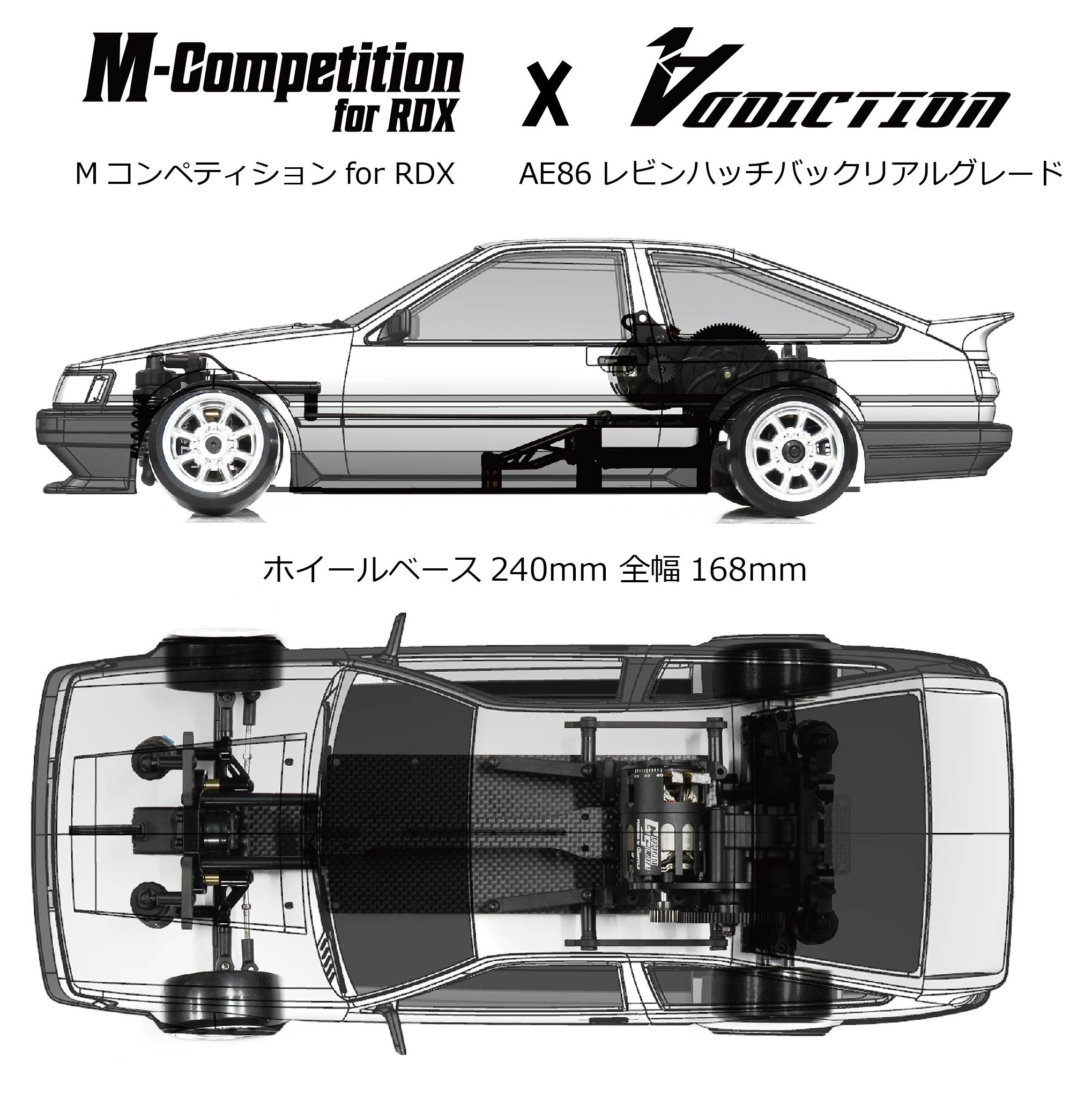

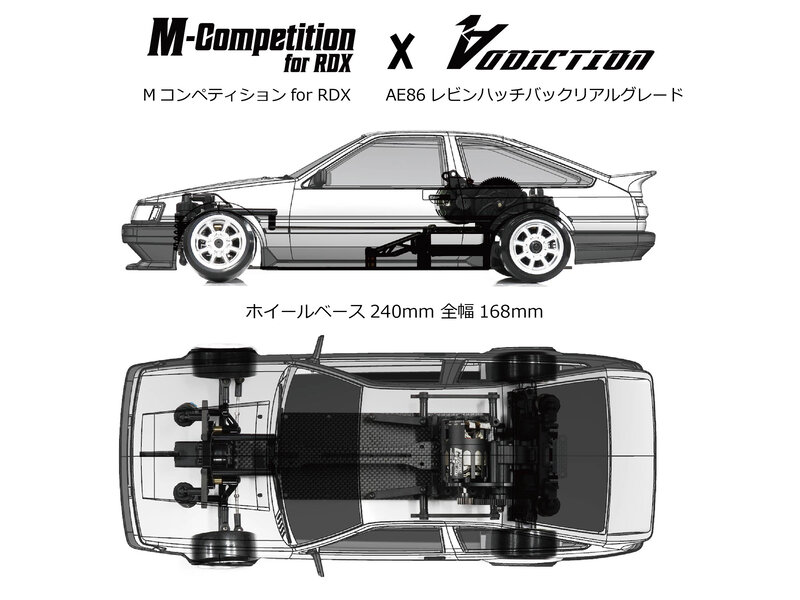

  Selectable wheelbases allow compatibility with most M chassis bodies on the market. With a wheelbase setting of 240mm, it fits perfectly with the Addiction AE86 Real Grade Series (normal specification) scheduled for release in the future.

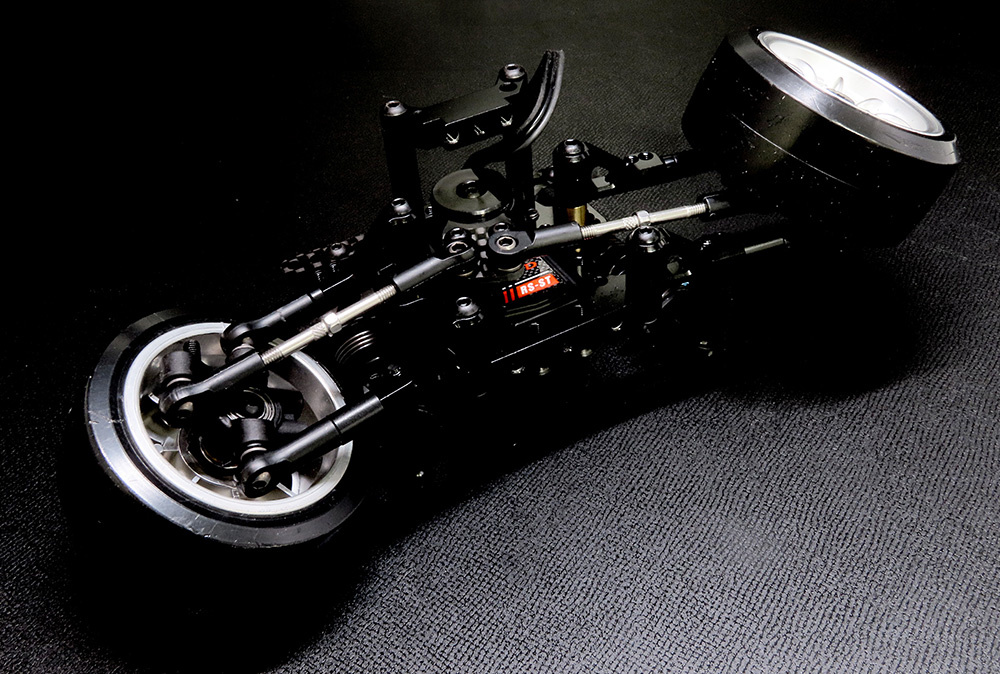

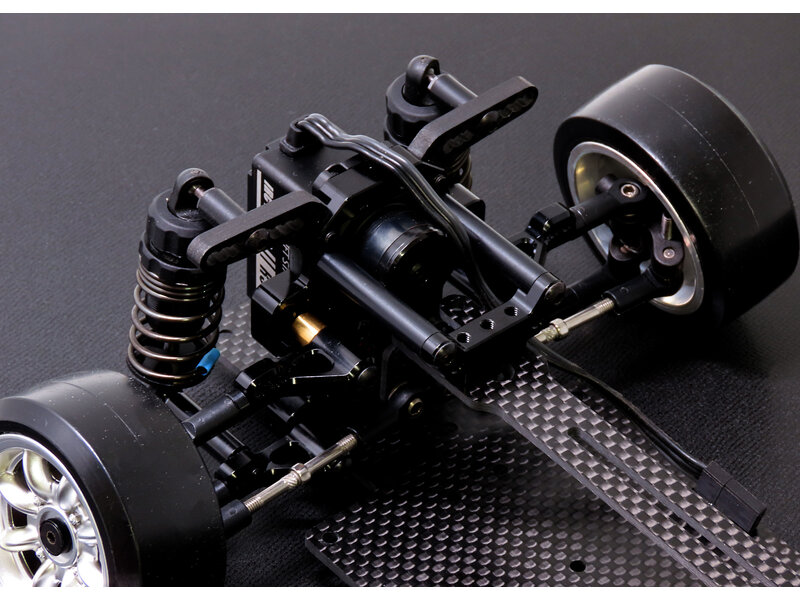

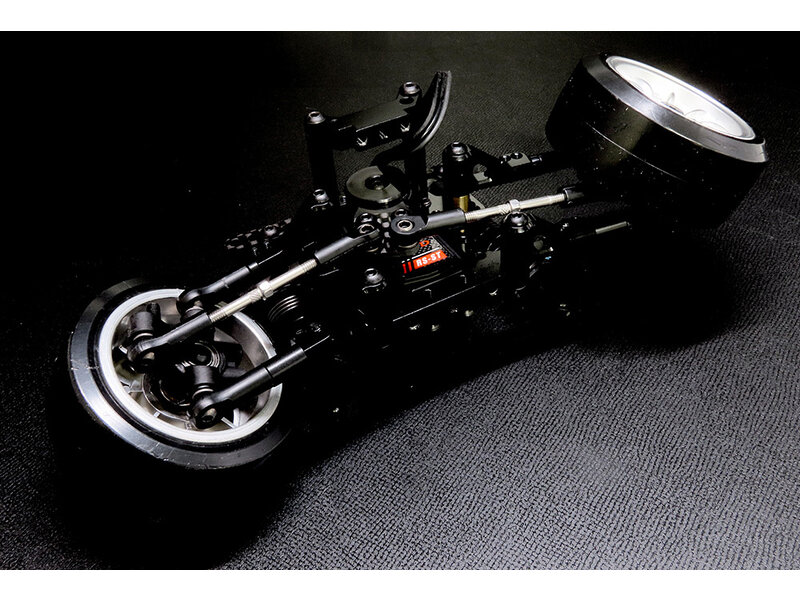

  Features of the integrated front unit VX-DOCK ZERO

- Bulkhead with steering servo storage

- Direct steering system

- Lower and upper arms directly connected to bulkhead

- Height-adjustable carbon shock tower

By changing the chassis mounting position of the VX-DOCK ZERO, you can easily and quickly select a wheelbase of 210 / 225 / 240mm. This can be done with only a few screws.

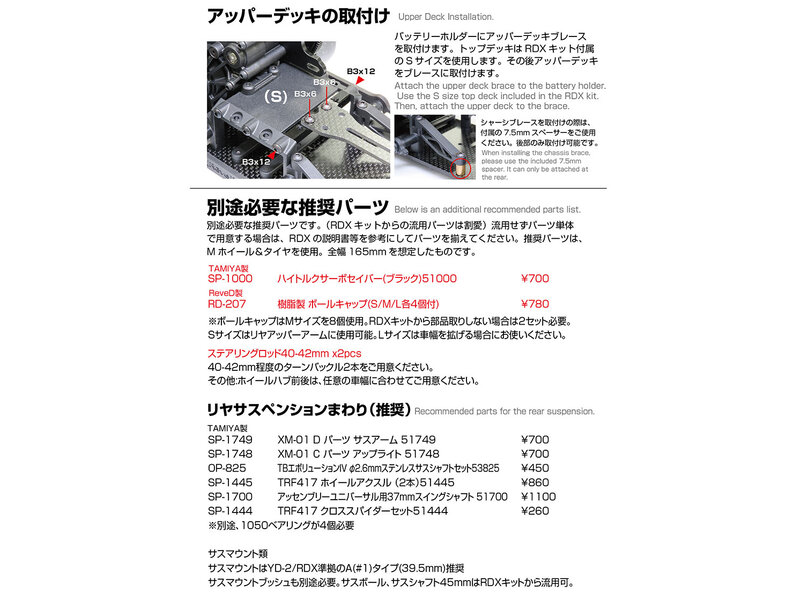

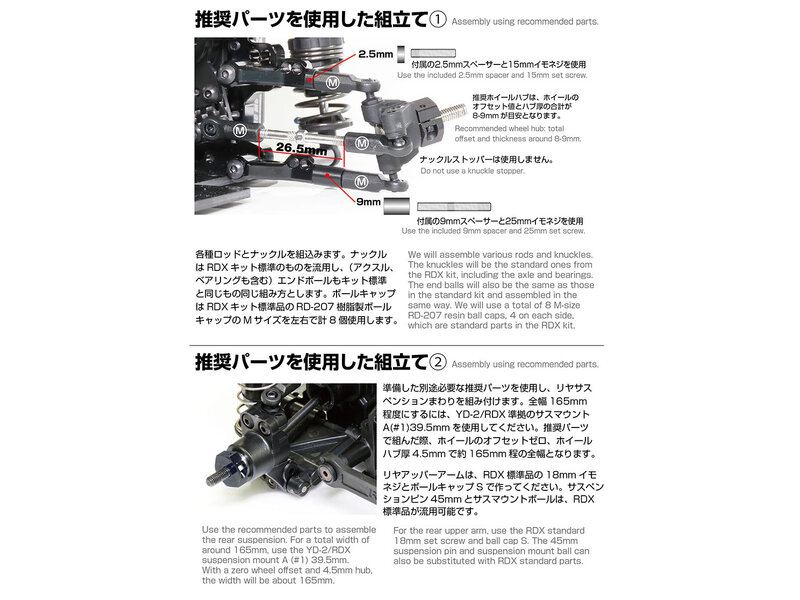

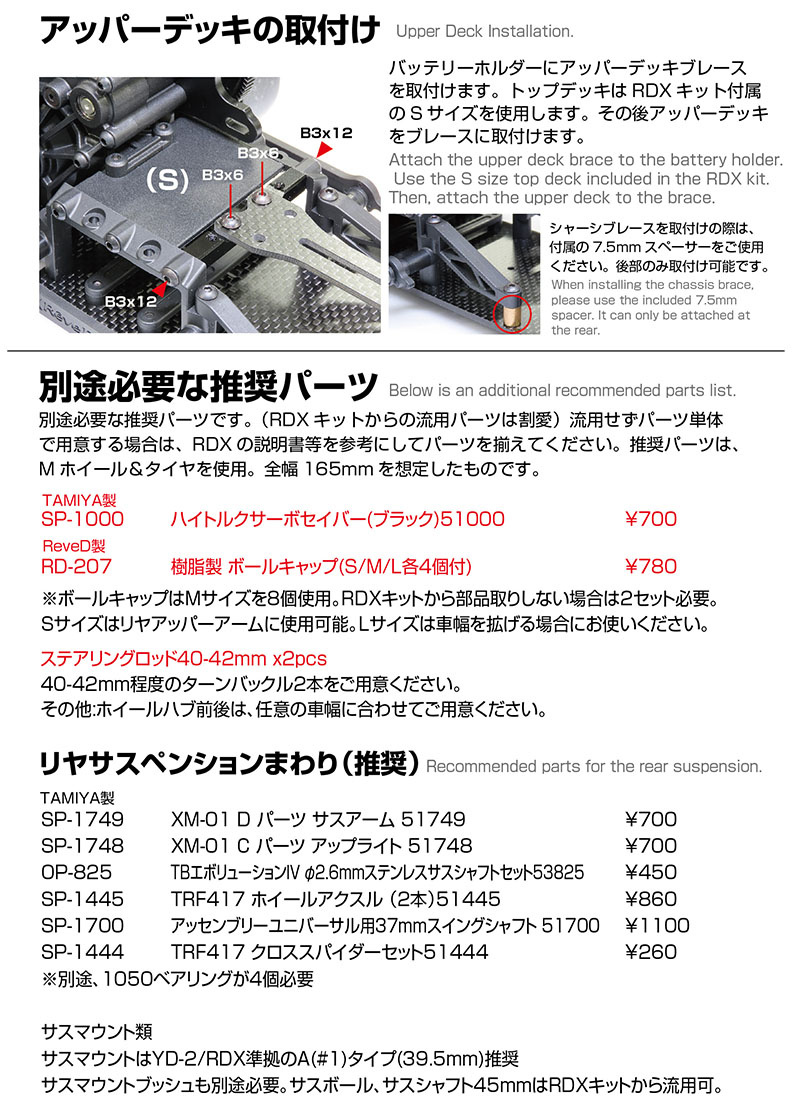

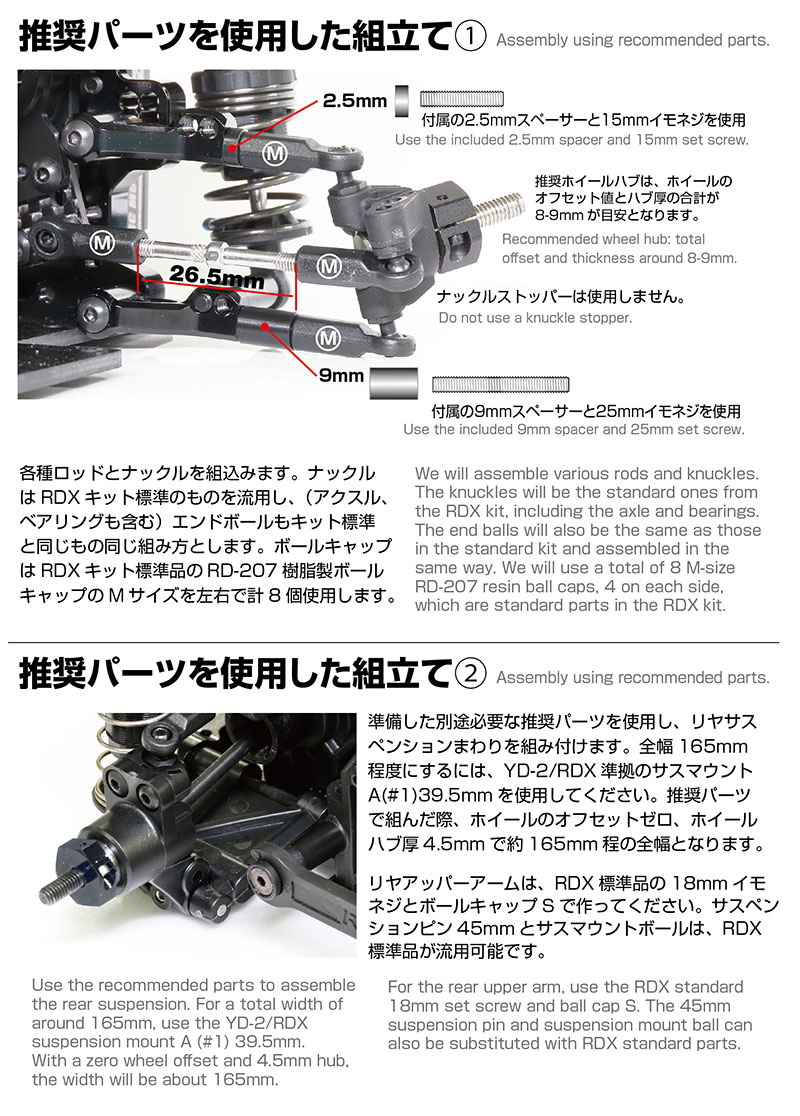

*This product is a conversion kit, so several parts such as the rear suspension are required separately to complete the kit. Please check the WRAP-UP NEXT SNS or assembly instructions for recommended parts that are required separately. (https://ameblo.jp/wrap-upnext08/entry-12871497684.html)
