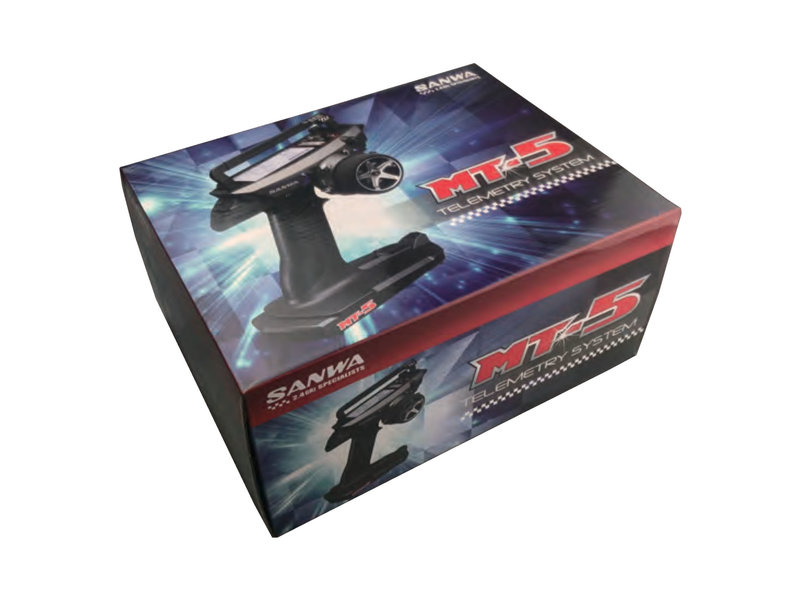

Sanwa MT-5 + RX-493i Radio Set

BEYOND MIDDLE CLASS RADIO

PRODUCT DESCRIPTION:

■SYSTEM: 2.4GHz FH5 ■4CH ■Transmitter: TX-491 ■Receiver: RX-493i
[New features]
●FH-5 RF MODE (SUR response mode compatible) ●Indicator Function [Other functions]
●Movable Carrying Handle ●Quick Setup Wizard ●Safety Link ●Racing Mode ●Customized Menu ●Micro SD card-compatible ●Telemetry Switch ●Clock ●Circumstance Temperature Display ●CSV Output for LOG data ●CODE 10-compatible (Naming support) ●Simultaneous three telemetry data display ●Three AAA Batteries ●Li-Po 1 cell-compatible (USB change support)●Large full dot LCD monitor ●Wight LED back light ●Full adjustable trigger ●Telemetry function ●Built-in antenna ●Multi Menu Selector ●ST/TH Tension Adjuster ●Dual Rate ●End Point Adjuster ●Anti-lock Brake ●Servo Speed ●Offset ●Trim/Sub trim ●Servo Reverse ●Curve (Exponential /Adjustable Rate Control) ●AUX1 (Movement type for 3CH. it's the same as MT-4S function.) ●AUX2 (Movement type for 4CH. it's the same as MT-4S function.) ●Fail safe (power/ battery) ●Timer (lap/ interval/ down) ●Lap ●Logger ●20 model memory (when used with SD card, 250 models is available.) ●Model Name (12 letters) ●Model (Select/ Clear/ Copy) ●Direct Model Select ●Trim Type (Center/ parallel) ●Throttle Type (70:30 / 50:50) ●RF MODE Setting (FH4T/FH3) ●Response Mode Setting (NOR/SHR/SSR)* ●Key Assign(SW/TRIM/DIAL/LEVER)
●AUX TYPE SETTING
・CODE AUX (w/ Naming function)
・STEP AUX (Step 1 - 100)
・POINT AUX (2 - 6 point)
・4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
・MOA MIXING (FWD/4WD/RWD)
・AUX MIXING (ST MIXING/ TH MIXING)
●Buzzer(scale/volume) ●Transmitter Battery Alarm ●LCD Contrast ●Volume Adjustment ●Mechanical Rudder Angle ●Small Grip Pad
●Compatible Receivers:RX-491, RX-492, RX-493, RX-493i
＊Telemetry-compatible

CAUTIONS AND SUPPLEMENTAL EXPLANATION:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
●When used with compatible receivers with Super Vortex Series, SV-Plus Series, PGS Servo Series, and SGS-02, etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR, SSR, or SUR mode.
If analog servo is used for SHR, SSR, or SUR mode, the servo will be broken and will not work.
Digital servo (PGS, SRG, Digital ERG, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used by PGS and SRG series servo.
SSR mode can be also used by SUPER VORTEX Gen 2 PRO, Gen2, STOCK, SUPER VORTEX ZERO, TYPE D, SPORT, HX-12 STOCK SPECIAL HV-01, and HV-02.
●SUR mode can be used only by PGS series servo.
SUR mode can be also used by SUPER VORTEX Gen 2 PRO.
*SUPER VORTEX Gen2 PRO need firmware update for SUR response mode.
Please refer SUPER VORTEX Gen2 PRO page.
http://sanwa-denshi.com/rc/car/speedcontroller/super_vortex_gen2_pro.html ●In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC. ●About Version Update Program Ver. 1.01.00 is latest version.
