Hobbywing / 30502002 / Multifunction LCD Programm Box Pro
Hobbywing / 30502002 / Multifunction LCD Programm Box Pro

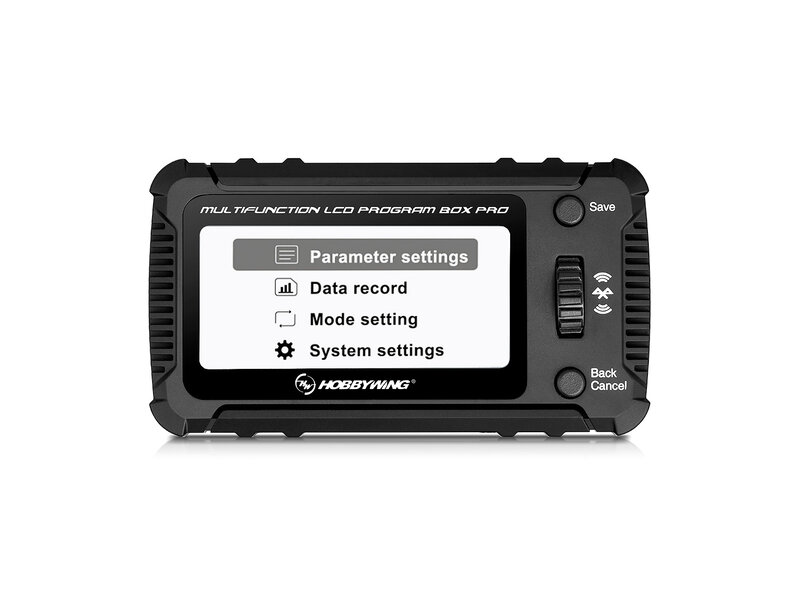

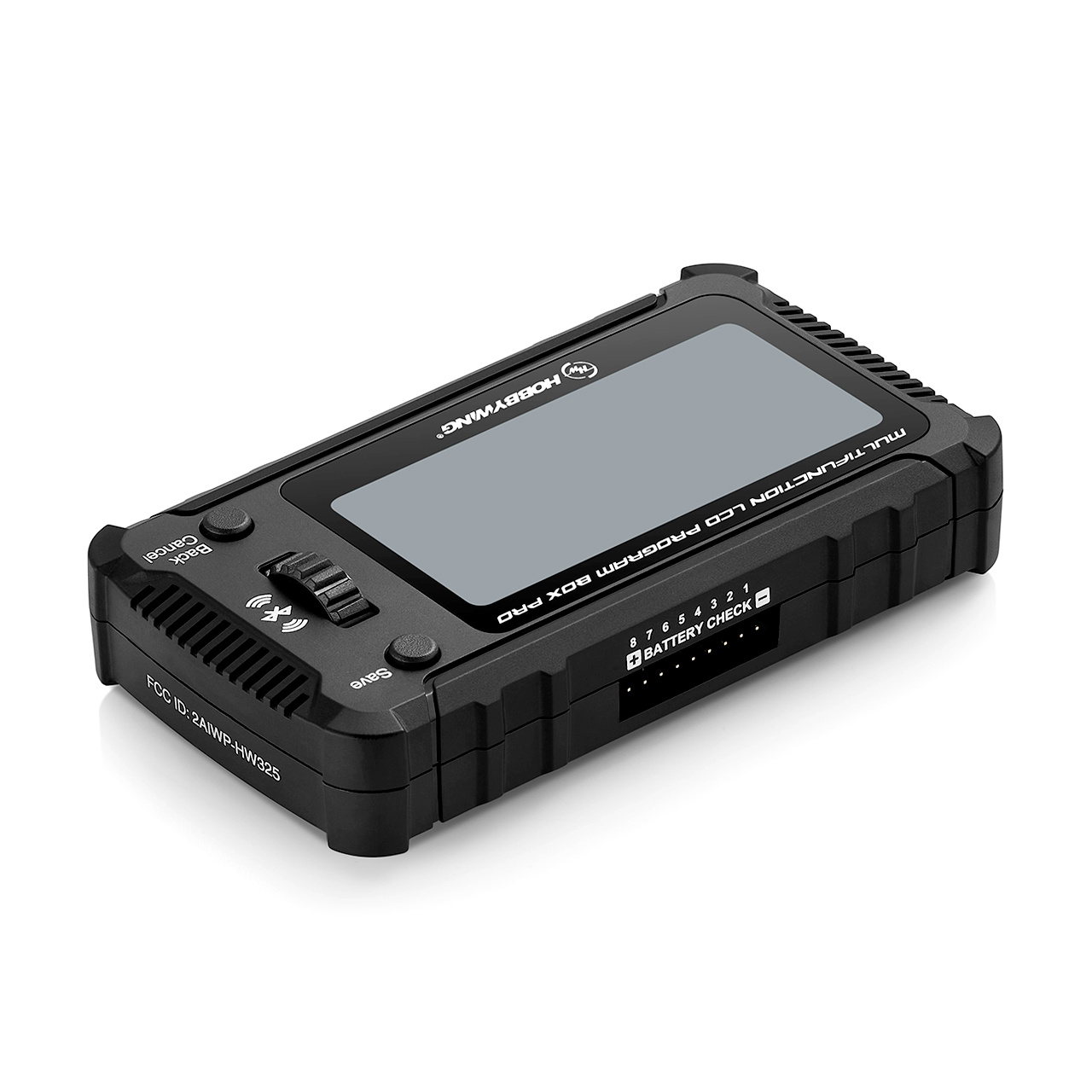

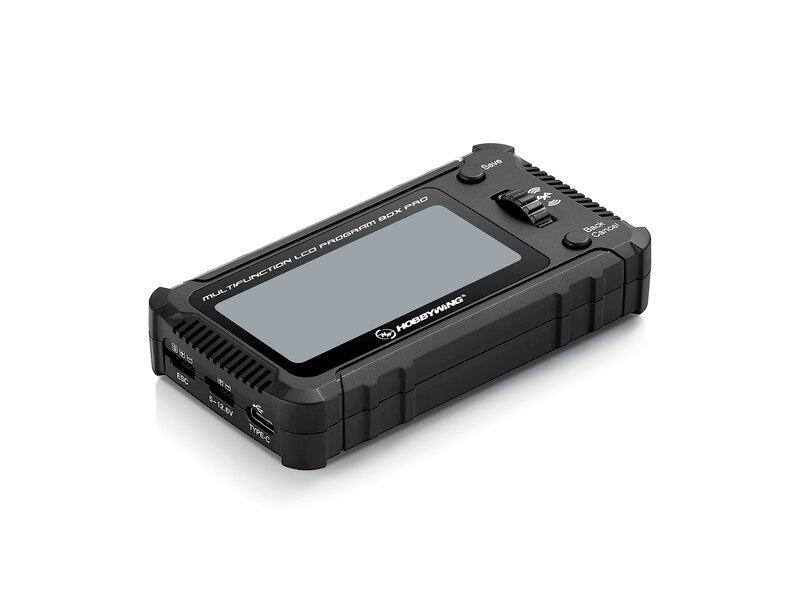

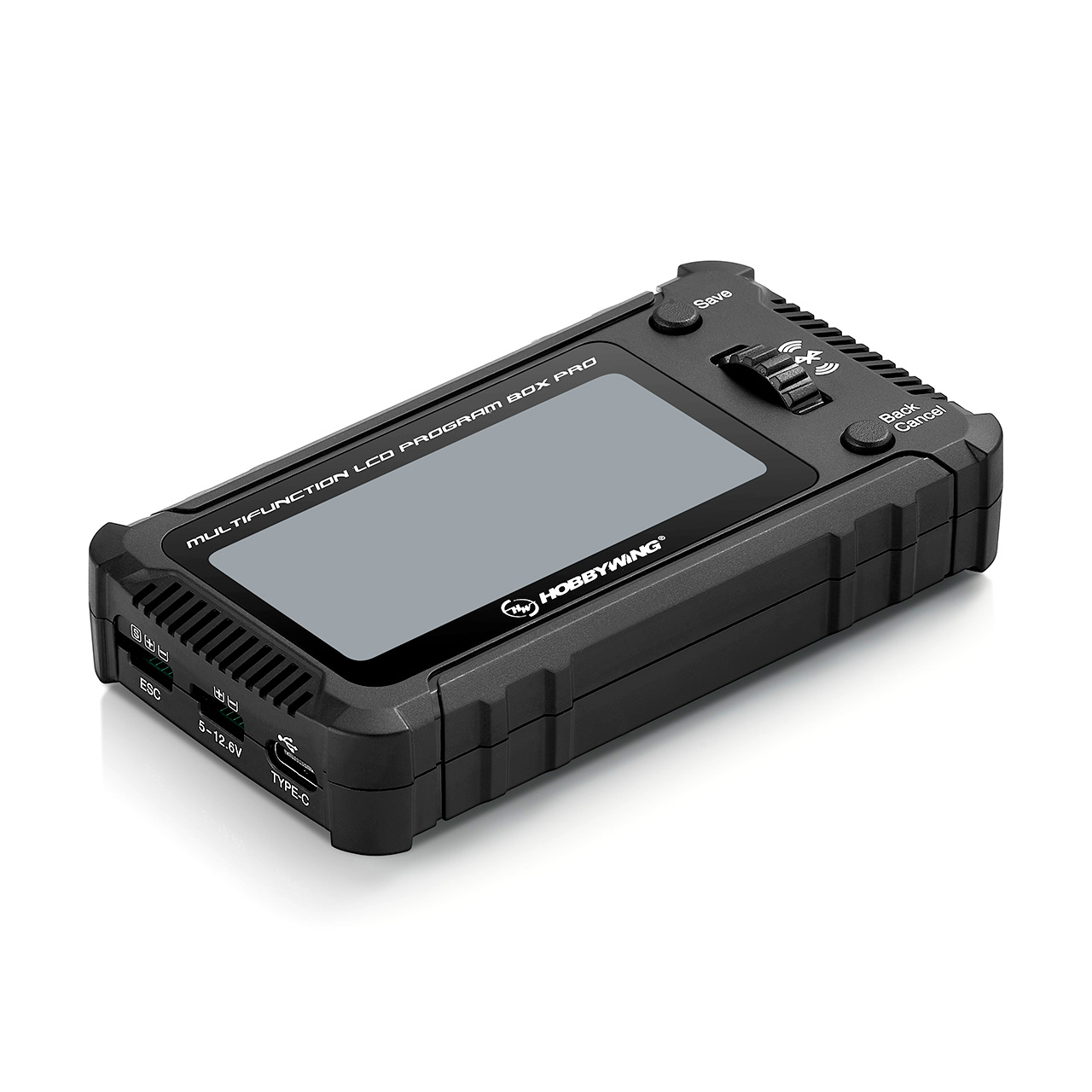

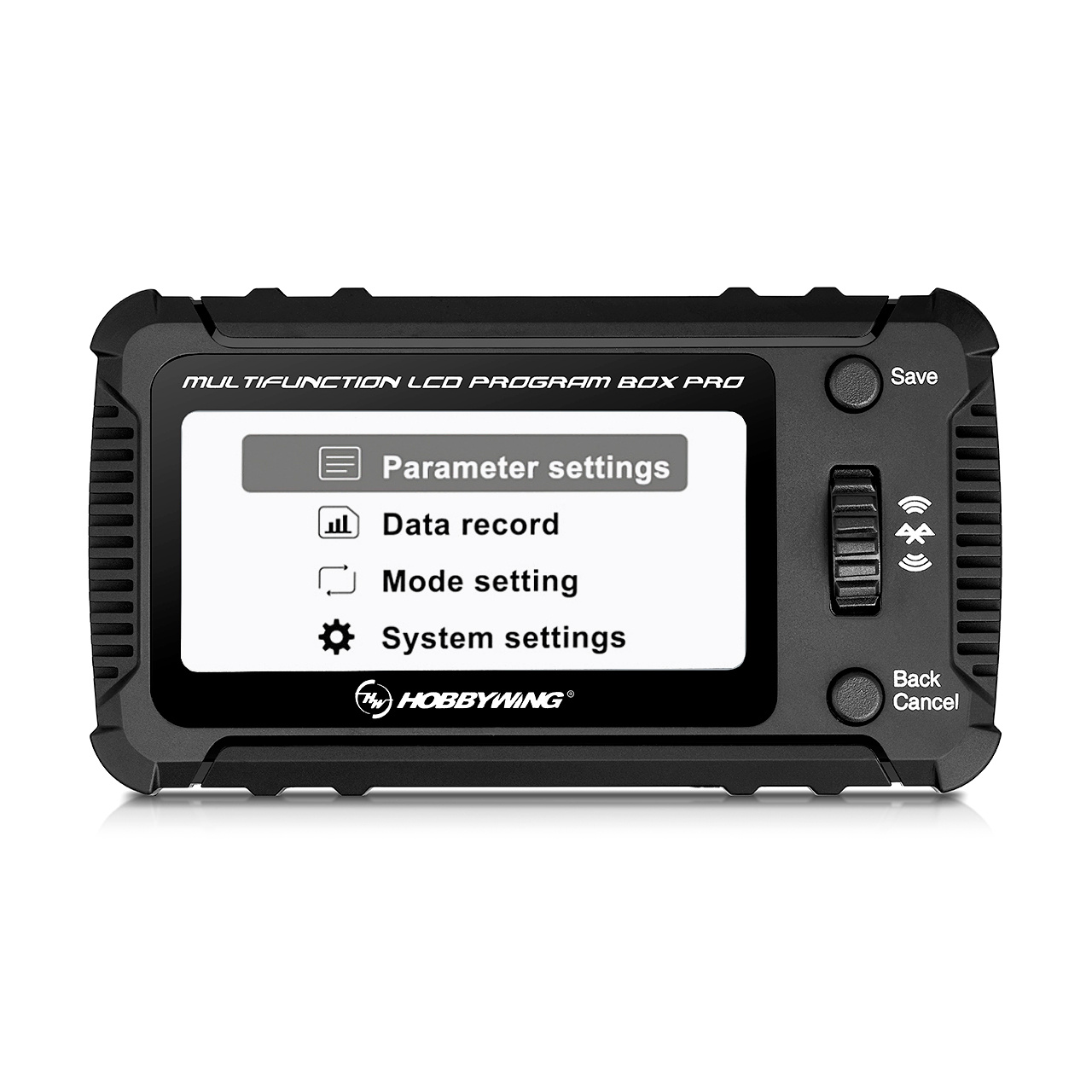

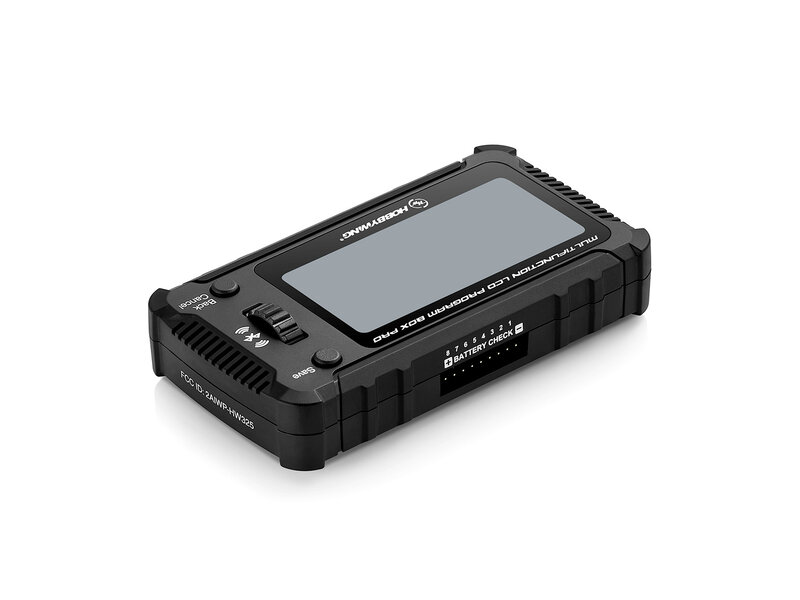

The multifunctional LCD Programming Box Pro, with its 2.8'' large LCD screen, provides the convenience of programming brushless ESCs quickly and easilywhether on the go or at home on the computer. With a USB-C adapter, the box can also be connected to a computer to update the firmware for example. Another feature is that the LCD Programming Box can measure the voltage of individual lithium cells or entire packs. So, three excellent functions in one compact device.
Note: Please refer to the programming settings of Your controller to find out which values can be set. Do not power the programming box unless the instructions for Your controller require the programming box to be powered by an external power supply.
Features:
- Vivid display with a screen diagonal of 2.8'' (approximately 7cm)
- Backlight adjustment with 20 available levels
- Easy operation thanks to the control wheel
- Save and export controller settings
- Built-in battery tester for 1-8S batteries
- Integrated Bluetooth signal
- Compatible with the HW Link V2 app (iOS and Android)
Technical Specifications:
- Input Voltage DC: 5-12.6V*
- Ports: USB Typ-C / Regler Stromversorgung
- Display: 2.8'' LCD
- LiPo Measurement: 2-8S LiPo / LiIon / LiFe
- Measurement Accuracy: +/- 0.1V
- Dimensions: 105.6x59.24.4mm
- Weight: 85g
*If the ESC does not have an integrated/external BEC, a separate battery is required for powering this programming box.
Supported ESCs:
- XERUN car-ESCs: Version 2.0 and newer
- EZRUN car-ESCs: Version 2.0 and newer
- PLATINUM air-ESCs
- Seaking Pro boat-ESCs
- Selected QUICRUN car-ESCs
