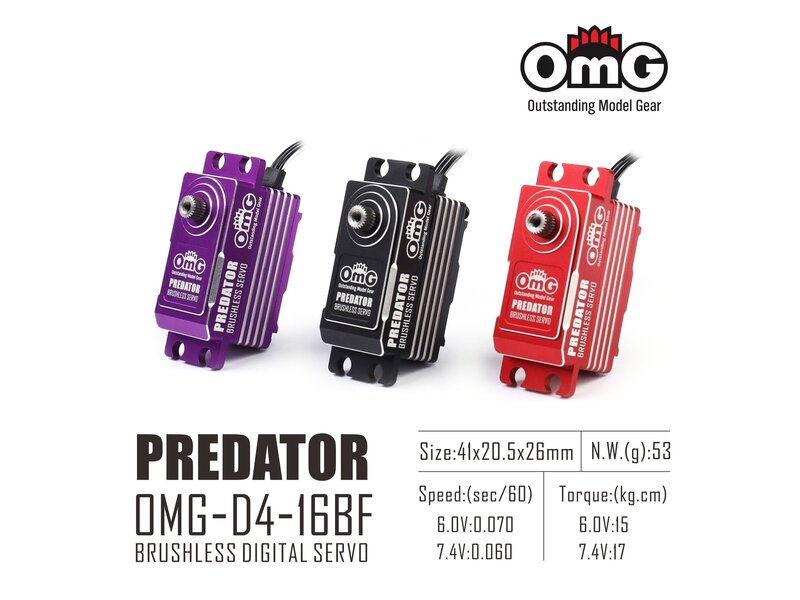

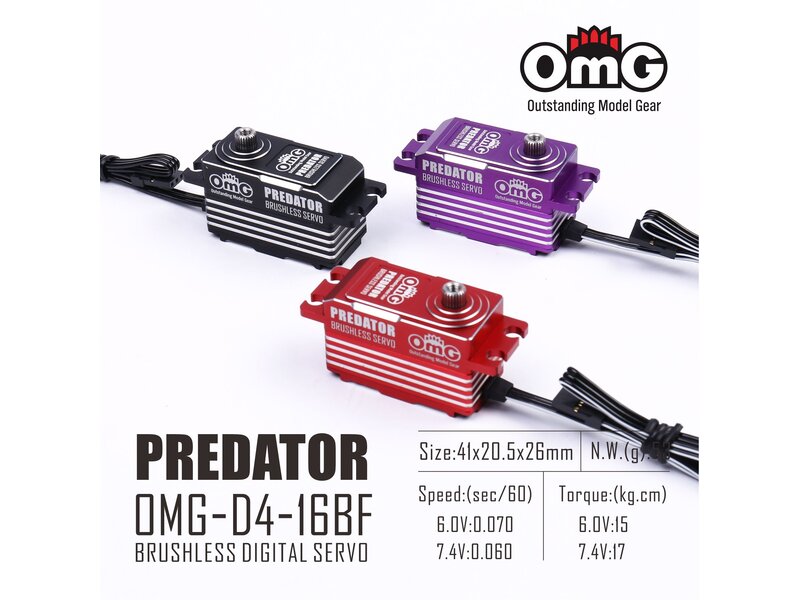

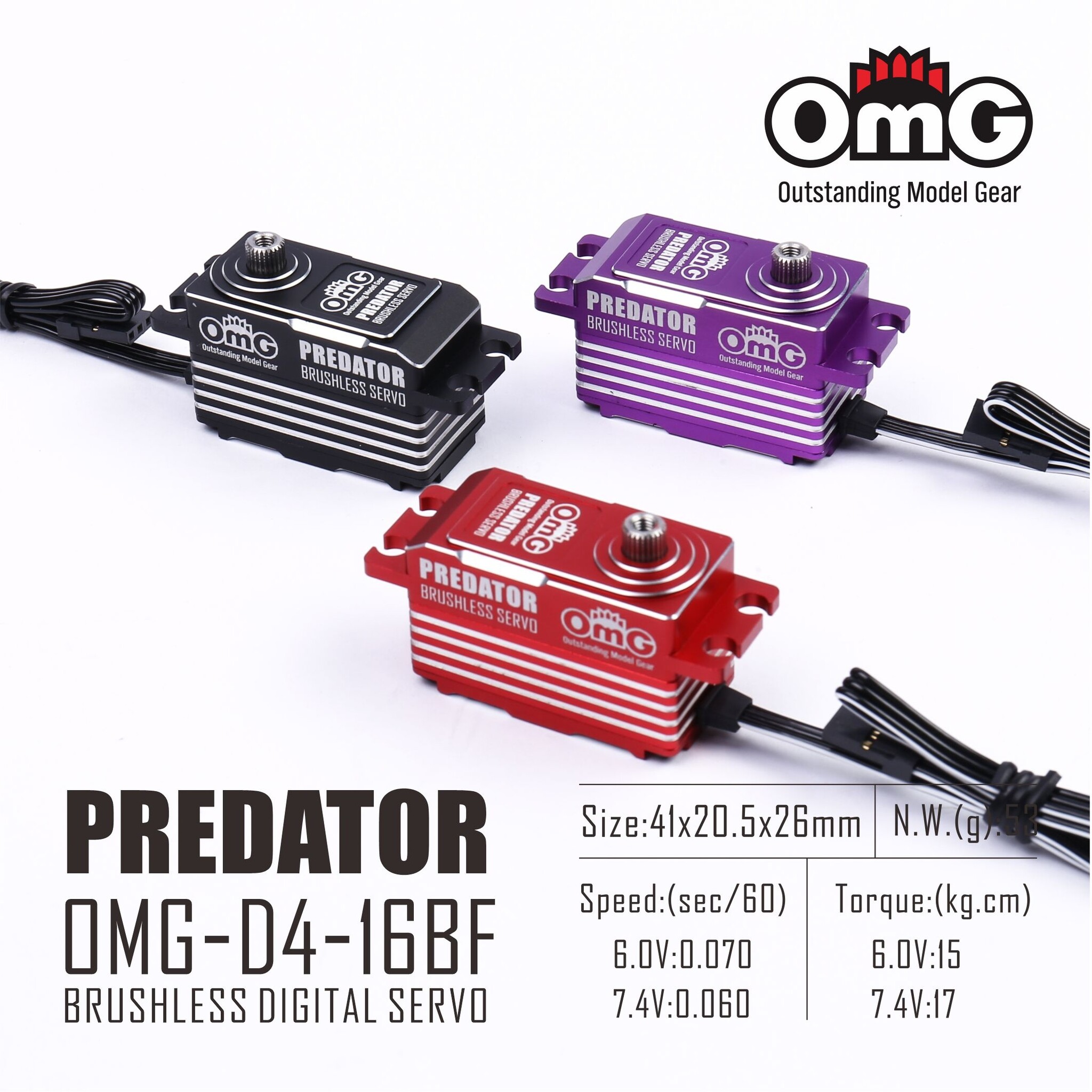

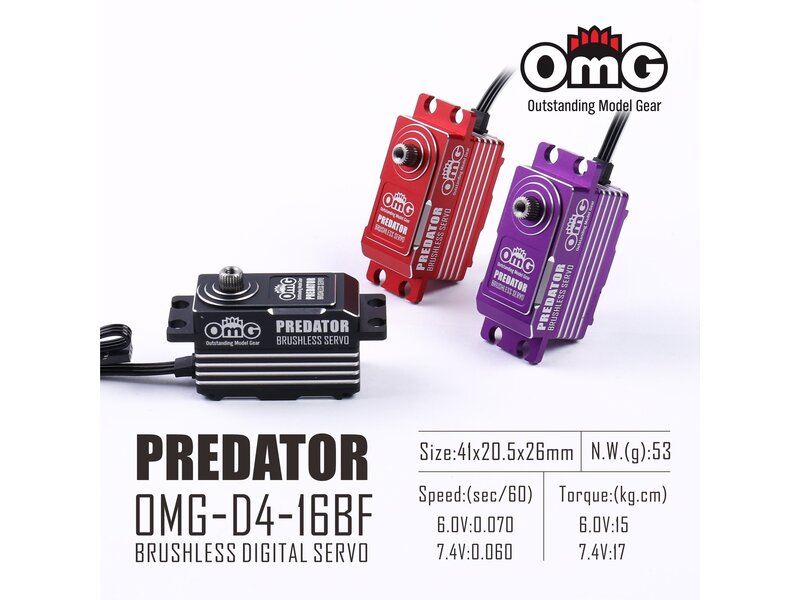

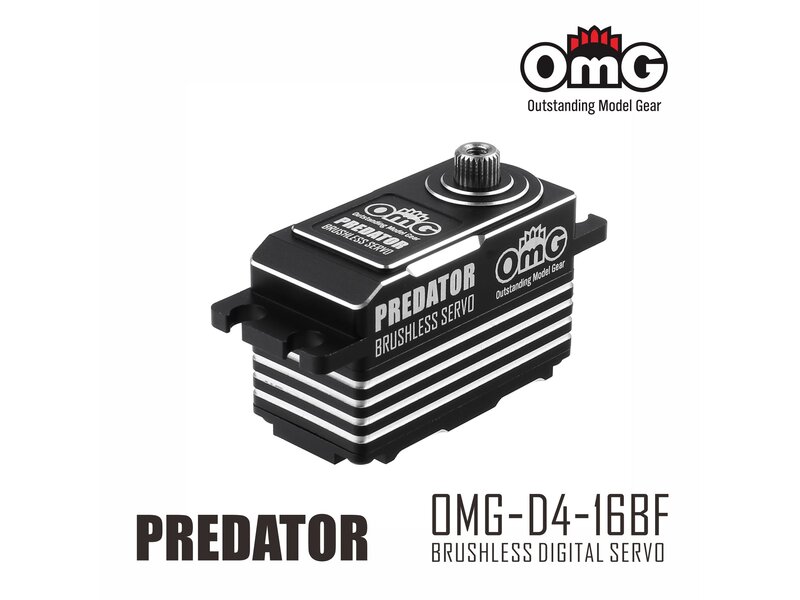

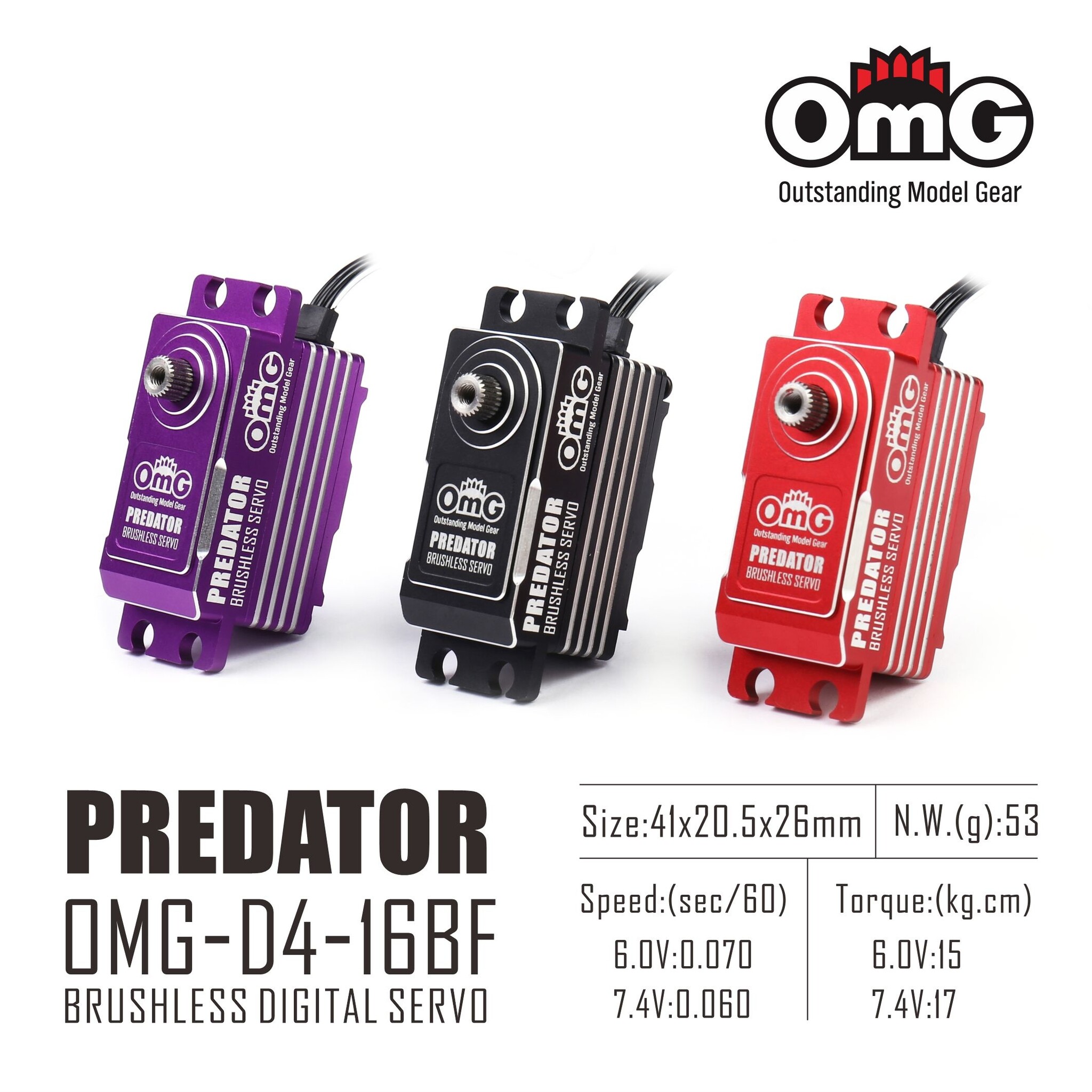

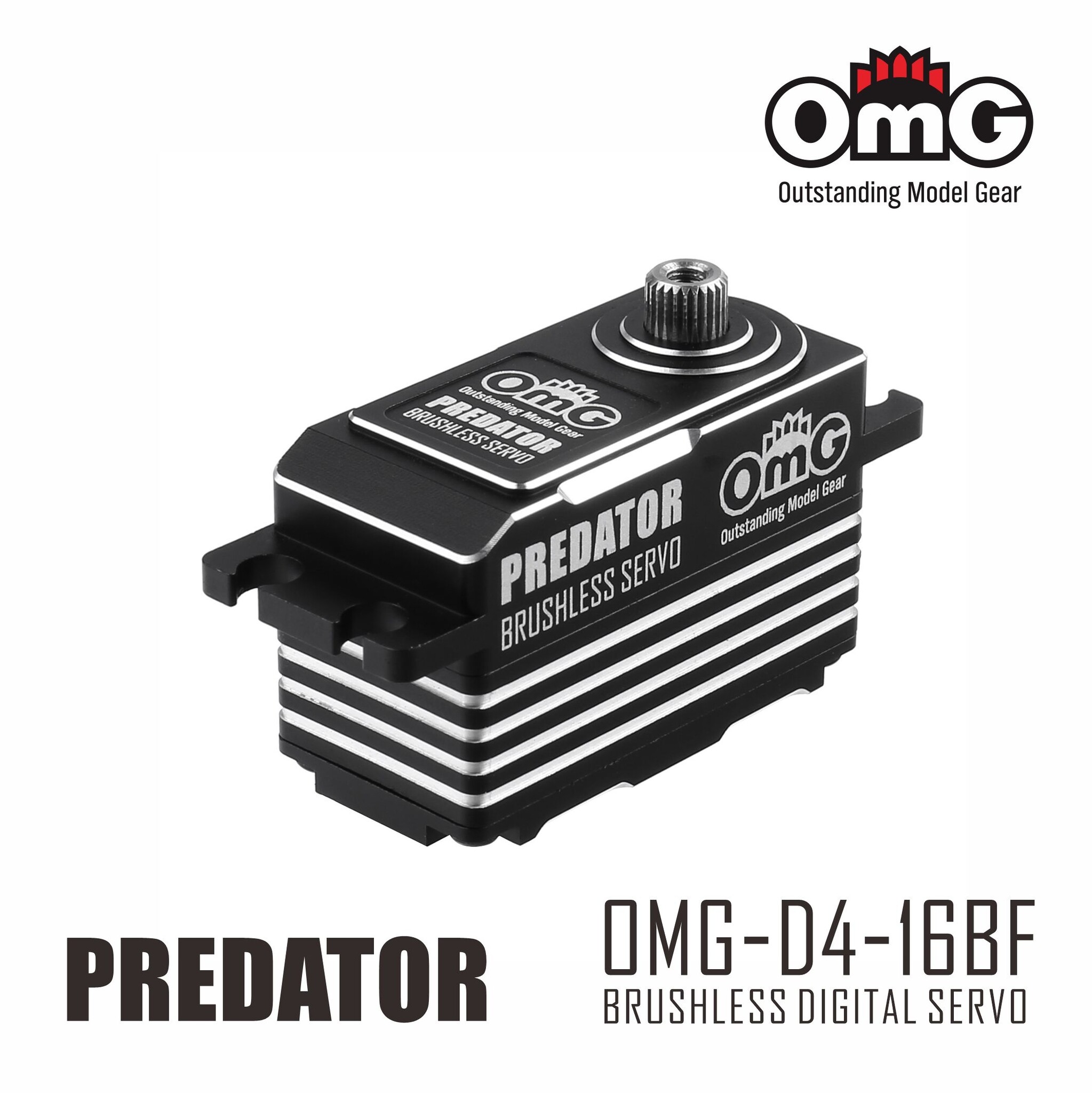

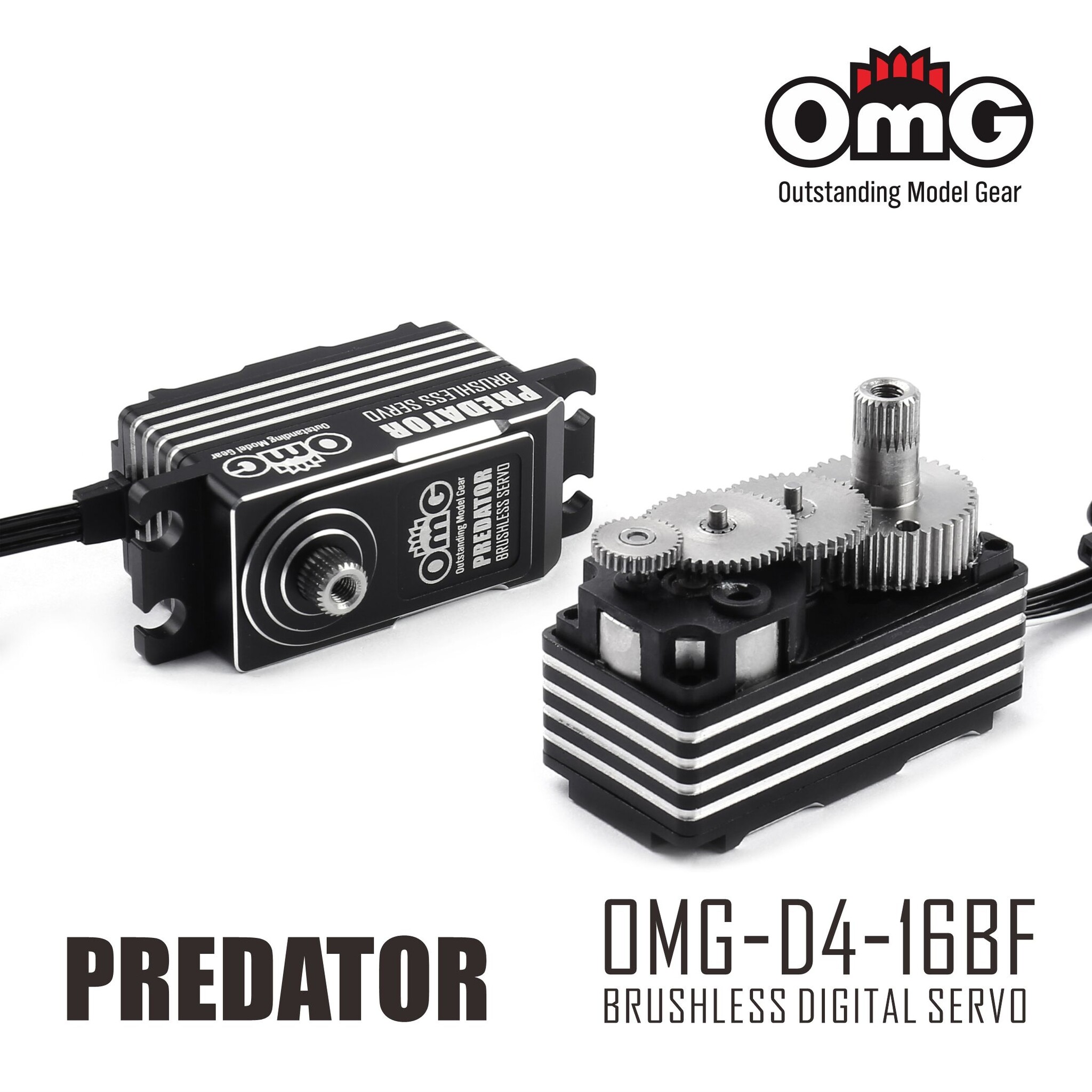

RC OMG Predator Full Metal Brushless Digital Low Profile Servo - Black
RC OMG / D4-16BF/BK / Predator Full Metal Brushless Digital Low Profile Servo - Black
RC OMG / D4-16BF/BK / Predator Full Metal Brushless Digital Low Profile Servo - Black
Specifications:
- Operating Voltage Range: 4.8 -8.4v
- Bearing Type: Dual Ball Bearings
- Speed: 4.8v (0.075/s) , 6.0v (0.070/s) , 7.4v (0.060/s) 8.4v (0.055/s)
- Torque: 4.8v (13 kgf.cm) , 6.0v (15 kgf.cm) , 7.4v (17 kgf.cm) 8.4v (18 kgf.cm)
- Limit angle: 120°± 10°
- No-load Current (mA): 550max
- Signal control method: PWM analog digital control
- Connector Wire Gauge: 22 AWG Black Wire
- Connector Type: JR
- Frequency: 1520us/333Hz
- Shaft: 5.9 * 25T
- Tooth: 25T
- Size: 41mm x 20.5mm x 26mm
- Weight: 53g
For: 1/10th drifting cars,touring cars and FWD cars, characterized by high torque and moderate speed. Parameters can be tuned according to the driver's habits
Material: Aluminum Case
Color: BK/RD/VT
Type: Digital Brushless High Voltage Servo

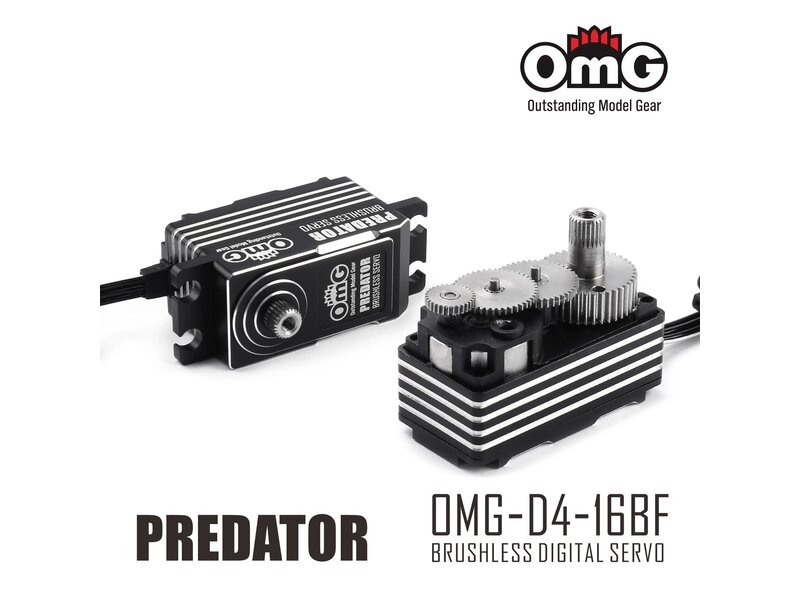

Gears: Stainless Steel
Brushless Motor
Digital precision provides great accuracy and performance
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: [email protected]
OMG-D4-16BF
Drift recommendation:
--Gain:15-18
--Damping:170-220
--Power:850-950
Servo feels powerful and predictable Touring car recommendation:
--Gain:25+
--Damping:50-80
--Power:950+
High gyro gain 65% Beginner gain 5-10 Damping 180 Power950
Normal gyro gain 50-60% Regular gain 10-20 Damping 180 Power 950
Low gyro gain 40-45% Pro gain 20-30 Damping 180 Power 950
