ReveD Rear A-Arm Conversion Set for MC-1 - DISCONTINUED

ReveD / M1-RAC / Rear A-Arm Conversion Set for MC-1

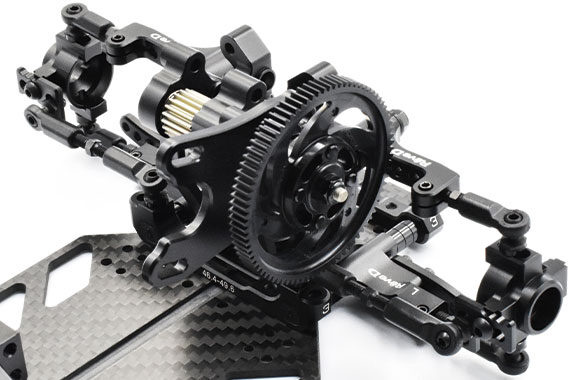

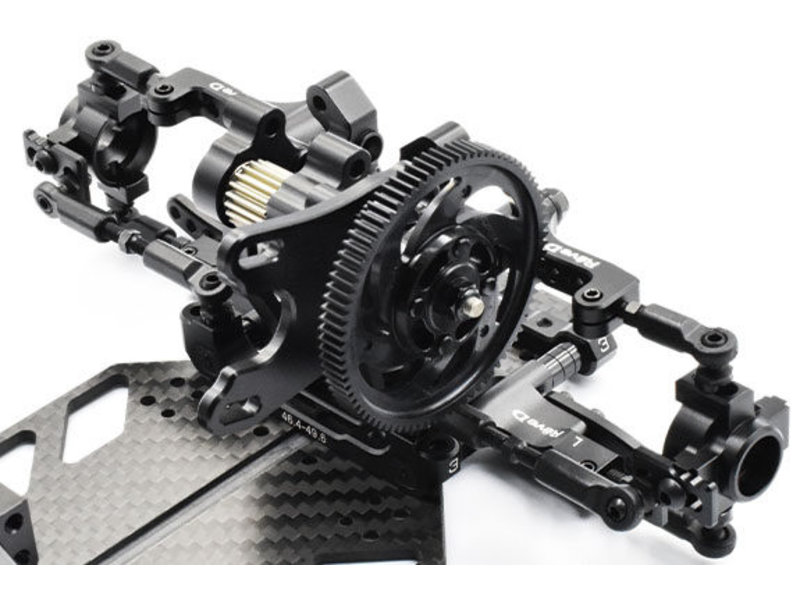

Introducing the rear A-arm conversion set for the MC-1!

This conversion set enables total setup freedom for the rear end!
Track width, camber angle, caster angle, roll center and lastly it’s possible to fine tune the toe and the bump toe angle change throughout the suspension stroke.
You can try various settings according to the road surface conditions, layout of the course and driving style.

Please try the rear A arm conversion set that brings out the monster performance of the MC-1 even more!

Contents:

• Alu. Rear Lower Arm (1pc each for left and right)
• Alu. Rear Lower Arm Plate (2pcs)
• Alu. Rear Upper Arm (Built-in ball bearing, 1pc each for left and right)
• Alu. Rear Upper Arm Mount (1pc each for left and right)
• Alu. Rear Knuckle (2pcs)
• Alu. Rear Knuckle Plate (2pcs)
• Alu. Suspension Mount RF type #3 (1pc)
• Alu. Suspension Mount #3 (1pc)
• High Rigidity Upper Arm Pins (2pcs)
• Lightweight POM Spacers (0.5mm thickness x 4 pcs, 1.0mm thickness x 4 pcs, 2.0mm thickness x 2 pcs)
• Alu. Thin M3 Nylon nut (2pcs)
• Turnbuckles M3/M4 16mm (2pcs)
• Turnbuckles M3/M4 24mm (2pcs)
• Alu. Spacers (Φ3 x Φ6 x 0.5mm) (2pcs)
• Alu. Spacers (Φ3 x Φ6 x 2.0mm) (4pcs)
• Alu. Spacers (Φ3 x Φ6 x 3.0mm) (6pcs)
• M2 x 5mm Cap Screws (2pcs)
• M2 x 8mm Cap Screws (4pcs)
• Molded Ball Caps (1pc)
• Molded Suspension Mount Bushings (2pc)
• Assembly Instructions (1sheet)
• Development View/Parts List (1sheet)

M1-RAC development view
* Please see the development view in below for the parts and part numbers included in the M1-RAC.

Dedicated parts for M1-RAC

Image	Product	Name
	M1-RA-01L	Alu. Rear Lower Arm（Left）for M1-RAC
	M1-RA-01R	Alu. Rear Lower Arm（Right）for M1-RAC
	M1-RA-01P	Alu. Rear Lower Arm Plate for M1-RAC
	M1-RA-02L	M1-RAC Alu. Rear Upper Arm Mount（Left）
	M1-RA-02R	M1-RAC Alu. Rear Upper Arm Mount（Right）
	M1-RA-03L	Alu. Rear Upper Arm（Left）for M1-RAC
	M1-RA-03R	Alu. Rear Upper Arm（Right）for M1-RAC
	M1-RA-04	Rear Upper Arm Pin Set for M1-RAC
	M1-RA-05	Alu. Rear Knuckle for M1-RAC
	M1-RA-05P	Alu. Rear Knuckle Plate for M1-RAC
	M1-RA-T20	M1-RAC Ti M3/M4 Turnbuckle（20mm）
	M1-RA-T25	M1-RAC Ti M3/M4 Turnbuckle（25mm）
	M1-RA-T30	M1-RAC Ti M3/M4 Turnbuckle（30mm）
	RD-207	Molded Ball Cap（S/M/L, 4pcs each）
	RD-300RF2	Alu. Suspension Mount（RF type）#2（42.8~46.0mm）
	RD-300RF3	Alu. Suspension Mount（RF type）#3（46.4~49.6mm）

General suspension mount

Image	Product	Name
	RD-300-1	Alu. Suspension Mount #1（39.2~42.4mm）
	RD-300-2	Alu. Suspension Mount #2（42.8~46.0mm）
	RD-300-3	Alu. Suspension Mount #3（46.4~49.6mm）
	RD-300-4	Alu. Suspension Mount #4（50.0~53.2mm）
	RD-300-5	Alu. Suspension Mount #5（53.6~56.8mm）
	RD-300-6	Alu. Suspension Mount #6（57.2~60.4mm）
	RD-300-7	Alu. Suspension Mount #7（60.8~64.0mm）
	RD-300-BS	Molded Suspension Bushings

General-purpose Titanium turnbuckle

Image	Product	Name
	RT-TB16	SPM Titanium Turnbuckles（16mm）
	RT-TB20	SPM Titanium Turnbuckles（20mm）
	RT-TB24	SPM Titanium Turnbuckles（24mm）
	RT-TB28	SPM Titanium Turnbuckles（28mm）
	RT-TB32	SPM Titanium Turnbuckles（32mm）
	RT-TB36	SPM Titanium Turnbuckles（36mm）
	RT-TB40	SPM Titanium Turnbuckles（40mm）

Other General-purpose products

Image	Product	Name
	RC-A3605	Alu. Spacers（φ3×φ6×0.5ｍｍ）
	RC-A3610	Alu. Spacers（φ3×φ6×1.0ｍｍ）
	RC-A3615	Alu. Spacers（φ3×φ6×1.5ｍｍ）
	RC-A3620	Alu. Spacers（φ3×φ6×2.0ｍｍ）
	RC-A3630	Alu. Spacers（φ3×φ6×3.0ｍｍ）
	RC-001	M2×5 Cap Screw
	RC-C28	M2×8 Cap Screw
	RT-004	SPM Titanium M2×5mm Cap Screw
	RT-C28	SPM Titanium M2×8mm Cap Screw
	RT-006SS	SPM Titanium Rod End Ball SS
	RC-006S	SPM Titanium Rod End Ball S
	RC-006M	SPM Titanium Rod End Ball M
	RT-006L	SPM Titanium Rod End Ball L
